Thắng từ Intorq BFK458-06, BFK458-08, BFK458-10, BFK458-12, BFK458-14, BFK458-16, BFK458-18, BFK458-20, BFK458-25

hai@tmpvietnam.com

0912 411 068

Thắng từ Intorq BFK458-06, BFK458-08, BFK458-10, BFK458-12, BFK458-14, BFK458-16, BFK458-18, BFK458-20, BFK458-25

Thắng từ hay còn gọi là phanh điện từ, thắng điện là loại thiết bị dùng để giảm hoặc dừng tốc độ quay của động cơ. Thắng từ được dùng kết nối đồng bộ với động cơ hoặc kết nối riêng biệt.
  • Liên hệ
  • 258

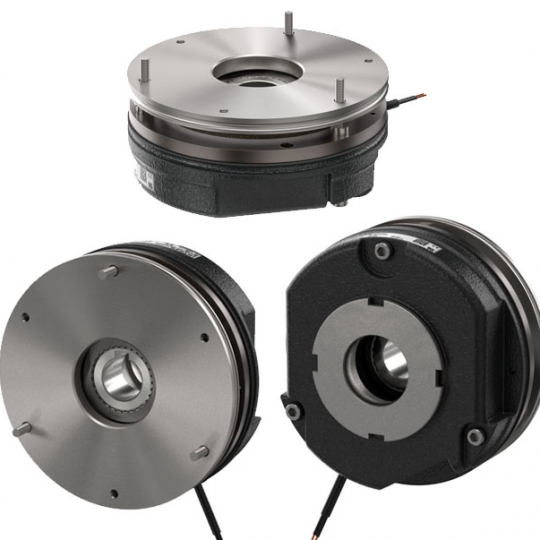

    Brakes Intorq BFK458

    Spring applied brakes, available as complete package, consisting of:

    Magnetic part (choose between type E - adjustable or type N-not adjustable)
    Rotor with brake lining
    Hub with keyway (to attach the brake to the shaft)

    Additional accessories can be ordered, such as (friction plates,  manual release levers, Flanges, Rectifiers or screw sets)
    Please enter for each product the voltage (DC) and the hub bore diameter (shaft diameter).


    Lenze Intorq spring-applied brake BFK458
    Complete brake consisting of:

    • Stator  (Magnet-part) type E- Adjustable or type N N – Non-adjustable

    • Rotor (standard with aluminium)

    • Hub avilable with different bore



    BFK458-06E Spring-applied brakes intorq

    Size 06

    E Variable Braking Torque: 1,5Nm - 4Nm

    BFK458-06N Spring-applied brakes intorq

    Size 06

    Fixed Braking Torque: 4Nm

    BFK458-08E Spring-applied brakes intorq

    Size 08

    E Variable Braking Torque: 3,5Nm - 8Nm

    BFK458-08N Spring-applied brakes intorq

    Size 08
    Fixed Braking Torque: 8Nm

    BFK458-10E Spring-applied brakes intorq

    Size 10

    E Variable Braking Torque: 7Nm - 16Nm

    BFK458-10N Spring-applied brakes intorq

    Size 10
    Fixed Braking Torque: 16Nm

    BFK458-12E Spring-applied brakes intorq

    Size 12

    E Variable Braking Torque: 14Nm - 32Nm

    BFK458-12N Spring-applied brakes intorq

    Size 12
    Fixed Braking Torque: 32Nm

    BFK458-14E Spring-applied brakes intorq

    Size 14

    E Variable Braking Torque: 25Nm - 60Nm

    BFK458-14N Spring-applied brakes intorq

    Size 14
    Fixed Braking Torque: 60Nm

    BFK458-16E Spring-applied brakes intorq

    Size 16

    E Variable Braking Torque: 35Nm - 80Nm

    BFK458-16N Spring-applied brakes intorq

    Size 16
    Fixed Braking Torque: 80Nm

    BFK458-18E Spring-applied brakes intorq

    Size 18

    E Variable Braking Torque: 65Nm - 150Nm

    BFK458-18N Spring-applied brakes intorq

    Size 18
    Fixed Braking Torque: 150Nm

    BFK458-20E Spring-applied brakes intorq

    Size 18

    E Variable Braking Torque: 80Nm - 260Nm

    BFK458-20N Spring-applied brakes intorq

    Size 20
    Fixed Braking Torque: 260Nm

    BFK458-25E Spring-applied brakes intorq

    Size 25

    E Variable Braking Torque: 175Nm - 400Nm

    BFK458-25N Spring-applied brakes intorq

    Size 25
    Fixed Braking Torque: 400Nm






    Brake Spares


    Spare parts for spring-applied brakes

    Coils in the voltages 24VDC,103, 180VDC, 205VDC; (other voltages on request)
    Rotors: Standard, noise-reduced, low-wear;
    Hubs: Preferred types of hub bore available here in the shop; (other bore diameters on request)



    BFK458-06

    Spare parts for Lenze Intorq BFK458-06 spring-operated brake
    Size 06
    Fixed Braking Torque: 4Nm
    E Variable Braking Torque:1,5Nm - 4Nm

    • Stator

    • Rotor

    • Hub

    • Cover ring

    • Friction plate

    • Flange

    • Screw kit



    BFK458-08

    Spare parts for Lenze Intorq BFK458-08 spring-operated brake
    Size 08
    N Fixed Braking Torque: 8Nm
    E Variable Braking Torque: 3,5Nm - 8Nm

    • Stator

    • Rotor

    • Hub

    • Cover ring

    • Friction plate

    • Flange

    • Screw kit



    BFK458-10
    Spare parts for Lenze Intorq BFK458-10 spring-operated brake

    Size 10
    Fixed Braking Torque: 16Nm
    E Variable Braking Torque: 7Nm - 16Nm

    • Stator

    • Rotor

    • Hub

    • Cover ring

    • Friction plate

    • Flange

    • Screw kit



    BFK458-12
    Spare parts for Lenze Intorq BFK458-12 spring-operated brake

    Size 12
    Fixed Braking Torque: 32 Nm
    E Variable Braking Torque: 14 Nm - 32 Nm

    • Stator

    • Rotor

    • Hub

    • Cover ring

    • Friction plate

    • Flange

    • Screw kit



    BFK458-14
    Spare parts for Lenze Intorq BFK458-14 spring-operated brake

    Size 14
    Fixed Braking Torque: 60 Nm
    E Variable Braking Torque: 25 Nm - 60 Nm

    • Stator

    • Rotor

    • Hub

    • Cover ring

    • Friction plate

    • Flange

    • Screw kit



    BFK458-16
    Spare parts for Lenze Intorq BFK458-16 spring-operated brake

    Size 16
    Fixed Braking Torque: 80 Nm
    E Variable Braking Torque: 35 Nm - 80 Nm

    • Stator

    • Rotor

    • Hub

    • Cover ring

    • Friction plate

    • Flange

    • Screw kit



    BFK458-18

    Spare parts for Lenze Intorq BFK458-18 spring-operated brake
    Size 18
    N Fixed Braking Torque: 150 Nm
    E Variable Braking Torque: 65 Nm - 150 Nm

    • Stator

    • Rotor

    • Hub

    • Cover ring

    • Friction plate

    • Flange

    • Screw kit



    BFK458-20

    Spare parts for Lenze Intorq BFK458-20 spring-operated brake
    Size 20
    Fixed Braking Torque: 260 Nm
    E Variable Braking Torque: 80 Nm - 260 Nm

    • Stator

    • Rotor

    • Hub

    • Cover ring

    • Friction plate

    • Flange

    • Screw kit



    BFK458-25

    Spare parts for Lenze Intorq BFK458-25 spring-operated brake
    Size 25
    N Fixed Braking Torque: 400 Nm
    E Variable Braking Torque: 175 Nm - 400 Nm

    • Stator

    • Rotor

    • Hub

    • Cover ring

    • Friction plate

    • Flange

    • Screw kit







    Rectifiers

    Bridge rectifiers and half-wave rectifiers:

    used to supply power to the electromagnetic DC current spring-applied brakes approvedfor operation with this type of rectifier.

    Rated Input voltage :  230 V, 400V

    Mounting position:

    • vertical

    • horizontal

    • horizontal with snap-in stud

    Version: 4-pole or 6-pole with the spark suppressors











    BEG-142-270 Bridge Rectifier 4-pole

    Product no.: 010546

    BEG-142-270 Intorq Bridge Rectifier

    four-terminal design, mounting position: vertical

    Umax = 270 VAC

    UDC = 205VDC at 230VAC

    BEG-143-270 bridge rectifier 4-pole

    Product no.: 010549

    BEG-143-270 Intorq Bridge Recitifier

    four-pin design, version: with snap-fit

    max. voltage:      270VAC
    max. current Imax     1,0A







    BEG-242-555 Half-Wave Rectifier 4-pole

    Product no.: 010489

    BEG-242-555 Intorq Half-Wave Rectifier

    four-terminal design, mounting position vertical

    Umax = 555 VAC

    UDC = 180VDC at 400VAC

    BEG-243-555 Half-Wave Rectifier 4-pole

    Product no.: 010490

    BEG-243-555 Intorq Half-Wave Rectifier 4-pole

    four-terminal design with snap-fit

    Umax = 555 VAC







    FS27T000 Bridge Rectifier 6-pole

    Product no.: 011145

    FS27T000  Bridge Rectifier /45B2711

    six-terminal design, Mounting position: horizontal

    Max. voltage: 270 VAC

    max. current (DC): 0,6A

    BEG-161-270 Bridge Rectifier 6-pole

    Product no.: 010103

    BEG-161-270 Intorq-Bridge Rectifier

    6-terminal design, mounting pos. horizontal
    Max. voltage: 270 VAC
    max. current (DC): 0,75A bei 60 °







    BEG-161-250-000-1 Bridge Rectifier 6-pole

    Product no.: 13128178

    BEG-161-250-000-1 Intorq-Bridge Rectifier

    6-terminal design, mounting pos. horizontal
    Max. voltage: 250 VAC
    max. current (DC): 0,75A bei 60 °

    This product has been replaced by the improved type BEG-161-270 with 270 V max. mains voltage.

    BEG-162-270 Bridge Rectifier 6-pole

    Product no.: 010822

    BEG-162-270 Intorq Bridge Rectifier

    six-terminal design, Mounting position: vertical

    Max. voltage: 270 VAC

    max. current (DC): 0,75A









    BEG-261-460 Half-Wave Rectifier 6-pole

    Product no.: 010789

    BEG-261-460 Intorq Half-Wave Rectifier

    six-terminal design, Mounting position: vertical

    Umax =460 VAC

    Udc = 180VDC at 400VAC

    BEG-262-460 Half-wave rectifier 6-pole

    Product no.: 010632

    BEG-262-460 Intorq Half-wave rectifier

    6-pin design, mounting position: vertical

    Umax =460 VAC

    U = 180VDC at 400VAC









    BEG-262-555-01 Half-Wave Rectifie 6-pole

    Product no.: 011148

    BEG-262-555-01 Intorq Half-Wave Rectifier

    6-terminal design, mounting position:Vertikal

    Umax = 550 VAC

    BEG-561-255-030 Bridge-Half-Wave Rectifier 6-pole 300 ms

    Product no.: 011087

    BEG-561-255-030 Intorq Bridge-Half-Wave Rectifier

    6-terminal design, mounting position:

    Umax = 270 VAC







    BEG-561-255-130 Bridge-Half-Wave Rectifier 6-pole 1300 ms

    Product no.: 011088

    BEG-561-255-130 Intorq Bridge-Half-Wave Rectifier

    6-terminal design, mounting position:

    Umax = 270 VAC

    BEG-561-440-006-1 Bridge-Half-Wave Rectifier 6-pole 60 ms

    Product no.: 011089

    BEG-561-440-006-1 Intorq Bridge-Half-Wave Rectifier

    6-terminal design, mounting position:

    Umax = 440 VAC







    BEG-561-440-030-1 Bridge-Half-Wave Rectifier 6-pole 300 ms

    Product no.: 011084

    BEG-561-440-030-1 Intorq Bridge-Half-Wave Rectifier

    6-terminal design, mounting position:

    Umax = 440 VAC

    BEG-561-440-130 Bridge-Half-Wave Rectifier 6-pole 1300 ms

    Product no.: 011090

    BEG-561-440-130 Intorq Bridge-Half-Wave Rectifier

    6-terminal design, mounting position:

    Umax = 440 VAC







    BEG-561-255-030-3 Bridge-Half-Wave Rectifier 6-pole 300 ms

    Product no.: BEG-561-255-030-3

    BEG-561-255-030-3 Intorq Bridge-Half-Wave Rectifier

    6-terminal design, mounting position:

    Umax = 255 VAC

    This product is no longer available. It has been replaced by the improved BEG-561-255-030.

    E82ZWBRE Brake switch 400VAC

    Product no.: 010715

    E82ZWBRE Brake switch 400VAC
    Brake voltage: 180VDC
    For controlling spring-applied brakes with inverter
