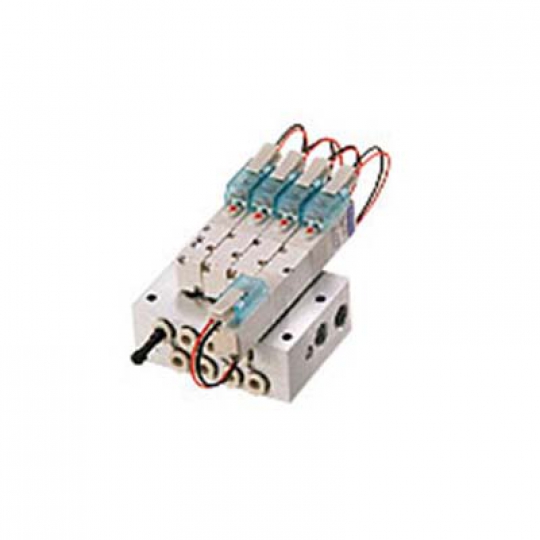

Van điện từ EA10A1, EA10A2, EA10A3, EA10A4, EA10A5, EA10A6, EA10F1, EA10F2, EA10F3, EA10F5, EA10F6, EA10LA1, EA10LA2, EA10LA3, EA10LA5, EA10LA6, EA10LF2, EA10LF3, EA10LF5, EA10SA3, EA10SA5, EA10SA6, EA10SF3, EA10SF5, EA10SF6 Koganei

Product Description

Pneumatic solenoid valve that realizes further low power consumption and high-speed response to meet various needs and professional control.

·Small, easy to use and simple structure
·Supports cylinder diameters up to 25 mm, achieves low power consumption with valve width of 10 mm, standard 0.55 W, and low current type 0.15 W
·Highly responsive type is available to meet diverse needs and professional control
[Application]
・ Compatible with pneumatic equipment and production lines in all industries

Achieve further low power consumption and high-speed responsiveness to meet diverse needs and professional control
Thin and compact shape: Valve width (10 mm), valve overall length (56.7 mm)
Efficient flow rate: Sonic conductance C "0.26dm^3 / (s*bar)" Ideal for pilot-operated valves and cylinder drive control up to ø25 (25 mm in diameter), etc.
Achieves high-speed response: Response time (6 ms when ON / 7 ms or less when OFF, (for high response type single solenoid))
Achieves low power consumption: Standard type (0.55 W), low current type (0.15W)
Improve reliability: The new solenoid structure and spindle structure, which are the culmination of valve technology, have improved basic performance such as lifespan and responsiveness, improving environmental friendliness: The grommet type is moisture-proof.
