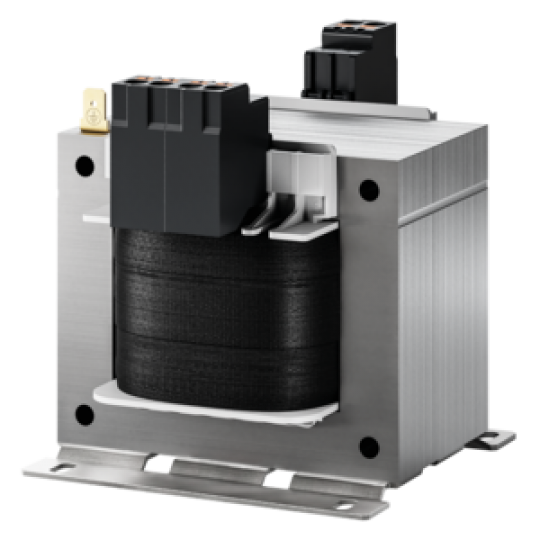

Biến áp điều khiển STE 63, STE 100, STE 160, STE 250, STE 400, STE 500, STE 630, STE 800, STE 1000, STE 1600, STE 2500 Block,

CONTROL TRANSFORMERS

Control transformers with galvanic isolation are used for supplies of control systems with more than two consumers in accordance with EN 60204. Designed in accordance with VDE 0113, control transformers also provide continuous power in the event of short-term overloads. BLOCK’s standard range includes power ratings of between 40 VA and 25,000 VA.

OVERVIEW

› Control transformer in accordance with VDE 0113
› Power output: 40 VA to 25,000 VA
› Supply of control systems in accordance with EN 60204

STE 400/4/23

Control- and isolating transformer • 1ph • 400 VA • IN: 380-420 Vac • OUT: 230 Vac

STE 500/23/24

Control- and safety isolating transformer • 1ph • 500 VA • IN: 219-241 Vac • OUT: 24 Vac

STE 500/4/24

Control- and safety isolating transformer • 1ph • 500 VA • IN: 380-420 Vac • OUT: 24 Vac

STE 500/4/23

Control- and isolating transformer • 1ph • 500 VA • IN: 380-420 Vac • OUT: 230 Vac

STE 630/4/23

Control- and isolating transformer • 1ph • 630 VA • IN: 380-420 Vac • OUT: 230 Vac

STE 800/4/23

Control- and isolating transformer • 1ph • 800 VA • IN: 380-420 Vac • OUT: 230 Vac

STE 1000/4/23

Control- and isolating transformer • 1ph • 1000 VA • IN: 380-420 Vac • OUT: 230 Vac

STE 1600/4/23

Control- and isolating transformer • 1ph • 1600 VA • IN: 380-420 Vac • OUT: 230 Vac

STE 2000/4/23

Control- and isolating transformer • 1ph • 2000 VA • IN: 380-420 Vac • OUT: 230 Vac

STE 2500/4/23

Control- and isolating transformer • 1ph • 2500 VA • IN: 380-420 Vac • OUT: 230 Vac

STE 63/23/24

Control- and safety isolating transformer • 1ph • 63 VA • IN: 219-241 Vac • OUT: 24 Vac

STE 63/4/24

Control- and safety isolating transformer • 1ph • 63 VA • IN: 380-420 Vac • OUT: 24 Vac

STE 63/4/23

Control- and isolating transformer • 1ph • 63 VA • IN: 380-420 Vac • OUT: 230 VacTop of FormBottom of Form

STE 100/23/24

Control- and safety isolating transformer • 1ph • 100 VA • IN: 219-241 Vac • OUT: 24 Vac

STE 100/4/24

Control- and safety isolating transformer • 1ph • 100 VA • IN: 380-420 Vac • OUT: 24 Vac

STE 100/4/23

Control- and isolating transformer • 1ph • 100 VA • IN: 380-420 Vac • OUT: 230 Vac

STE 160/23/24

Control- and safety isolating transformer • 1ph • 160 VA • IN: 219-241 Vac • OUT: 24 Vac

STE 160/4/24

Control- and safety isolating transformer • 1ph • 160 VA • IN: 380-420 Vac • OUT: 24 Vac

STE 160/4/23

Control- and isolating transformer • 1ph • 160 VA • IN: 380-420 Vac • OUT: 230 Vac

STE 250/23/24

Control- and safety isolating transformer • 1ph • 250 VA • IN: 219-241 Vac • OUT: 24 Vac

STE 250/4/24

Control- and safety isolating transformer • 1ph • 250 VA • IN: 380-420 Vac • OUT: 24 Vac

STE 250/4/23

Control- and isolating transformer • 1ph • 250 VA • IN: 380-420 Vac • OUT: 230 Vac

STE 320/23/24

Control- and safety isolating transformer • 1ph • 320 VA • IN: 219-241 Vac • OUT: 24 Vac

STE 320/4/23

Control- and isolating transformer • 1ph • 320 VA • IN: 380-420 Vac • OUT: 230 Vac

STE 400/23/24

Control- and safety isolating transformer • 1ph • 400 VA • IN: 219-241 Vac • OUT: 24 Vac
