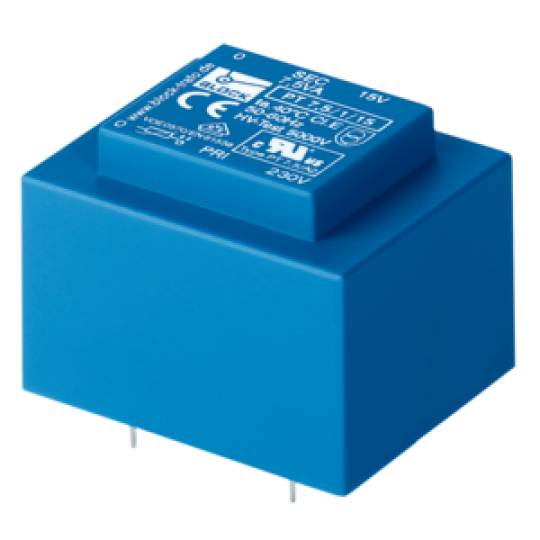

Biến áp PT Block
PCB TRANSFORMERS
PCB transformers are vacuum molded and feature a very high proof voltage as a result. Used on the PCB, they provide electrical isolation as a power transformer or safe electrical isolation for the input and output sides as an isolating or safety transformer. BLOCK’s wide range of standard solutions provides the ideal supply for your circuit, from PCB transformers offering absolute or limited short-circuit protection or ones that are not short-circuit proof.
OVERVIEW
› Minimal design size with high power output
› Double input and output voltage for series or parallel connections
› Power output 0.35 VA to 52 VA
PT 4,5/1/6
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 4,5 VA • IN: 230 Vac • OUT: 6 Vac
PT 4,5/2/6
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 4,5 VA • IN: 230 Vac • OUT: 2 x 6 Vac
PT 4,5/1/8
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 4,5 VA • IN: 230 Vac • OUT: 8 Vac
PT 4,5/2/8
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 4,5 VA • IN: 230 Vac • OUT: 2 x 8 Vac
PT 4,5/1/9
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 4,5 VA • IN: 230 Vac • OUT: 9 Vac
PT 4,5/2/9
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 4,5 VA • IN: 230 Vac • OUT: 2 x 9 Vac
PT 4,5/1/12
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 4,5 VA • IN: 230 Vac • OUT: 12 Vac
PT 4,5/2/12
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 4,5 VA • IN: 230 Vac • OUT: 2 x 12 Vac
PT 4,5/1/15
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 4,5 VA • IN: 230 Vac • OUT: 15 Vac
PT 4,5/2/15
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 4,5 VA • IN: 230 Vac • OUT: 2 x 15 Vac
PT 4,5/1/18
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 4,5 VA • IN: 230 Vac • OUT: 18 Vac
PT 4,5/2/18
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 4,5 VA • IN: 230 Vac • OUT: 2 x 18 Vac
PT 4,5/2/24
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 4,5 VA • IN: 230 Vac • OUT: 2 x 24 Vac
PT 7,5/1/6
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 7,5 VA • IN: 230 Vac • OUT: 6 Vac
PT 7,5/2/6
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 7,5 VA • IN: 230 Vac • OUT: 2 x 6 Vac
PT 7,5/1/8
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 7,5 VA • IN: 230 Vac • OUT: 8 Vac
PT 7,5/2/8
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 7,5 VA • IN: 230 Vac • OUT: 2 x 8 Vac
PT 7,5/1/9
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 7,5 VA • IN: 230 Vac • OUT: 9 Vac
PT 7,5/2/9
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 7,5 VA • IN: 230 Vac • OUT: 2 x 9 Vac
PT 7,5/1/12
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 7,5 VA • IN: 230 Vac • OUT: 12 Vac
PT 7,5/2/12
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 7,5 VA • IN: 230 Vac • OUT: 2 x 12 Vac
PT 7,5/1/15
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 7,5 VA • IN: 230 Vac • OUT: 15 Vac
PT 7,5/2/15
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 7,5 VA • IN: 230 Vac • OUT: 2 x 15 Vac
PT 7,5/2/18
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 7,5 VA • IN: 230 Vac • OUT: 2 x 18 Vac
PT 7,5/1/24
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 7,5 VA • IN: 230 Vac • OUT: 24 Vac
PT 13/1/6
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 13 VA • IN: 230 Vac • OUT: 6 Vac
PT 13/2/6
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 13 VA • IN: 230 Vac • OUT: 2 x 6 Vac
PT 13/1/8
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 13 VA • IN: 230 Vac • OUT: 8 Vac
PT 13/2/8
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 13 VA • IN: 230 Vac • OUT: 2 x 8 Vac
PT 13/1/9
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 13 VA • IN: 230 Vac • OUT: 9 Vac
PT 13/2/9
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 13 VA • IN: 230 Vac • OUT: 2 x 9 Vac
PT 13/1/12
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 13 VA • IN: 230 Vac • OUT: 12 Vac
PT 13/2/12
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 13 VA • IN: 230 Vac • OUT: 2 x 12 Vac
PT 13/1/15
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 13 VA • IN: 230 Vac • OUT: 15 Vac
PT 13/2/15
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 13 VA • IN: 230 Vac • OUT: 2 x 15 Vac
PT 13/1/18
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 13 VA • IN: 230 Vac • OUT: 18 Vac
PT 13/2/18
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 13 VA • IN: 230 Vac • OUT: 2 x 18 Vac
PT 13/1/24
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 13 VA • IN: 230 Vac • OUT: 24 Vac
PT 22/1/8
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 22 VA • IN: 230 Vac • OUT: 8 Vac
PT 22/2/8
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 22 VA • IN: 230 Vac • OUT: 2 x 8 Vac
PT 22/1/9
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 22 VA • IN: 230 Vac • OUT: 9 Vac
PT 22/2/9
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 22 VA • IN: 230 Vac • OUT: 2 x 9 Vac
PT 22/1/12
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 22 VA • IN: 230 Vac • OUT: 12 Vac
PT 22/2/12
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 22 VA • IN: 230 Vac • OUT: 2 x 12 Vac
PT 22/1/15
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 22 VA • IN: 230 Vac • OUT: 15 Vac
PT 22/2/15
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 22 VA • IN: 230 Vac • OUT: 2 x 15 Vac
PT 22/1/18
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 22 VA • IN: 230 Vac • OUT: 18 Vac
PT 22/2/18
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 22 VA • IN: 230 Vac • OUT: 2 x 18 Vac
PT 22/1/24
Short circuit proof PCB transformer, safety isolating transformer • 1ph • 22 VA • IN: 230 Vac • OUT: 24 Vac
