Biến áp điều khiển STEU 63, STEU 100, STEU 160, STEU 250, STEU 320, STEU 400, STEU 500, STEU 630, STEU 800, STEU 1000, STEU 1600, STEU 2500 Block

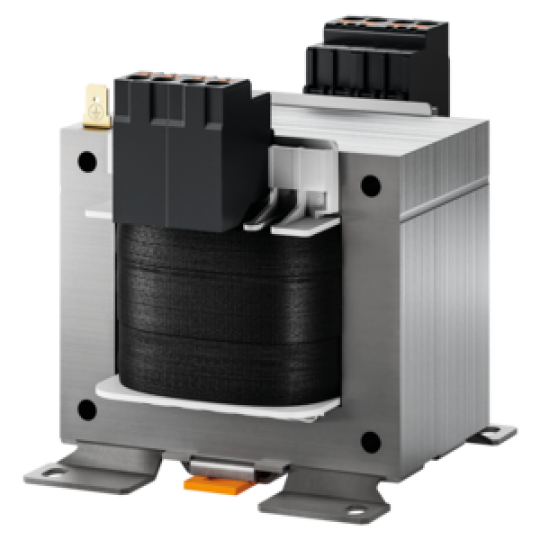

CONTROL TRANSFORMERS
Control transformers with galvanic isolation are used for supplies of control systems with more than two consumers in accordance with EN 60204. Designed in accordance with VDE 0113, control transformers also provide continuous power in the event of short-term overloads. BLOCK’s standard range includes power ratings of between 40 VA and 25,000 VA.
OVERVIEW
› Control transformer in accordance with VDE 0113
› Power output: 40 VA to 25,000 VA
› Supply of control systems in accordance with EN 60204
STEU 63/24
Control- and safety isolating transformer • 1ph • 63 VA • IN: 230-400 Vac • OUT: 2 x 12 Vac
STEU 63/48
Control- and isolating transformer • 1ph • 63 VA • IN: 230-400 Vac • OUT: 2 x 24 Vac
STEU 63/23
Control- and isolating transformer • 1ph • 63 VA • IN: 230-400 Vac • OUT: 2 x 115 Vac
STEU 100/24
Control- and safety isolating transformer • 1ph • 100 VA • IN: 230-400 Vac • OUT: 2 x 12 Vac
STEU 100/48
Control- and isolating transformer • 1ph • 100 VA • IN: 230-400 Vac • OUT: 2 x 24 Vac
STEU 100/23
Control- and isolating transformer • 1ph • 100 VA • IN: 230-400 Vac • OUT: 2 x 115 Vac
STEU 160/24
Control- and safety isolating transformer • 1ph • 160 VA • IN: 230-400 Vac • OUT: 2 x 12 Vac
STEU 160/48
Control- and isolating transformer • 1ph • 160 VA • IN: 230-400 Vac • OUT: 2 x 24 Vac
STEU 160/23
Control- and isolating transformer • 1ph • 160 VA • IN: 230-400 Vac • OUT: 2 x 115 Vac
STEU 250/24
Control- and safety isolating transformer • 1ph • 250 VA • IN: 230-400 Vac • OUT: 2 x 12 Vac
STEU 250/48
Control- and isolating transformer • 1ph • 250 VA • IN: 230-400 Vac • OUT: 2 x 24 Vac
STEU 250/23
Control- and isolating transformer • 1ph • 250 VA • IN: 230-400 Vac • OUT: 2 x 115 Vac
STEU 320/24
Control- and safety isolating transformer • 1ph • 320 VA • IN: 230-400 Vac • OUT: 2 x 12 Vac
STEU 320/48
Control- and isolating transformer • 1ph • 320 VA • IN: 230-400 Vac • OUT: 2 x 24 VacBottom of Form
STEU 320/23
Control- and isolating transformer • 1ph • 320 VA • IN: 230-400 Vac • OUT: 2 x 115 Vac
STEU 400/24
Control- and safety isolating transformer • 1ph • 400 VA • IN: 230-400 Vac • OUT: 2 x 12 Vac
STEU 400/48
Control- and isolating transformer • 1ph • 400 VA • IN: 230-400 Vac • OUT: 2 x 24 Vac
STEU 400/23
Control- and isolating transformer • 1ph • 400 VA • IN: 230-400 Vac • OUT: 2 x 115 Vac
STEU 500/24
Control- and safety isolating transformer • 1ph • 500 VA • IN: 230-400 Vac • OUT: 2 x 12 Vac
STEU 500/48
Control- and isolating transformer • 1ph • 500 VA • IN: 230-400 Vac • OUT: 2 x 24 Vac
STEU 500/23
Control- and isolating transformer • 1ph • 500 VA • IN: 230-400 Vac • OUT: 2 x 115 Vac
STEU 630/24
Control- and safety isolating transformer • 1ph • 630 VA • IN: 230-400 Vac • OUT: 2 x 12 Vac
STEU 630/48
Control- and isolating transformer • 1ph • 630 VA • IN: 230-400 Vac • OUT: 2 x 24 Vac
STEU 630/23
Control- and isolating transformer • 1ph • 630 VA • IN: 230-400 Vac • OUT: 2 x 115 Vac
STEU 800/24
Control- and safety isolating transformer • 1ph • 800 VA • IN: 230-400 Vac • OUT: 2 x 12 Vac
STEU 800/48
Control- and isolating transformer • 1ph • 800 VA • IN: 230-400 Vac • OUT: 2 x 24 Vac
STEU 800/23
Control- and isolating transformer • 1ph • 800 VA • IN: 230-400 Vac • OUT: 2 x 115 Vac
STEU 1000/24
Control- and safety isolating transformer • 1ph • 1000 VA • IN: 230-400 Vac • OUT: 2 x 12 Vac
STEU 1000/48
Control- and isolating transformer • 1ph • 1000 VA • IN: 230-400 Vac • OUT: 2 x 24 Vac
STEU 1000/23
Control- and isolating transformer • 1ph • 1000 VA • IN: 230-400 Vac • OUT: 2 x 115 Vac
STEU 1600/23
Control- and isolating transformer • 1ph • 1600 VA • IN: 230-400 Vac • OUT: 2 x 115 Vac
STEU 2000/23
Control- and isolating transformer • 1ph • 2000 VA • IN: 230-400 Vac • OUT: 2 x 115 Vac
STEU 2500/23
Control- and isolating transformer • 1ph • 2500 VA • IN: 230-400 Vac • OUT: 2 x 115 Vac
