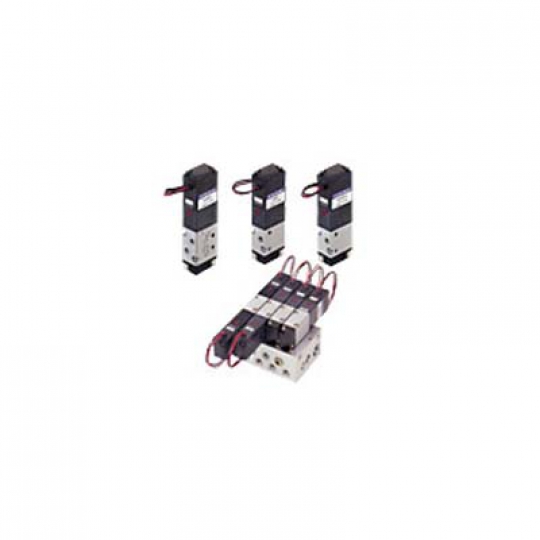

Van điện từ 110-4E1, 110-4E2, 111-4E1, A110-4E1, A110-4E2, 111E1, A111E1 (A110E1), 113-4E2, A110-4KE2, A110-4ME2, A113-4E2, A113-4KE2, A113-4ME2 Koganei

  • Liên hệ
  • 20

    Product Specifications

    Item Basic part number
    Direct piping
    F, FE type manifold
    111E1
    (110E1)
    110-4E1
    110-4E2
    110-4KE2 113-4E2 113-4KE2
    Sub-base piping
    A, AJ type manifold
    A111E1
    (A110E1)
    A110-4E1
    A110-4E2
    A110-4KE2 A110-4ME2 A113-4E2 A113-4KE2 A113-4ME2
    Operating fluid Air
    Operating method Internal Pilot Type
    Flow rate
    Characteristic
    Sonic conductance C dm^3 / (s*bar) 0.84 0.8 0.76 0.72
    Effective cross-sectional area [Cv value] mm^2 4.2 [0.23] 4.0 [0.22] 3.8 [0.21] 3.6 [0.2]
    Piping connection port diameter M5 × 0.8
    Lubrication Not required
    Operating Pressure Range: MPa 0.15 to 0.7
    Guaranteed Proof Pressure: MPa 1.05
    Response time
    ON / OFF ms
    12 V DC,24 V DC 15/25 or less 15/25 [20] or less 15 or less 15/30 or less
    100 V AC,200 V AC 15/15 or less 15/15 [15] or less 15/20 or less
    Maximum Operating Frequency: Hz 5
    Minimum excitation time required for self-holding ms 50 (□110-4E2) 50
    Operating temperature range (- Operating fluid)°C 5 to 50
    Impact resistance m/s^2 1373.0 (Axial direction 294.2) 294.2
    Mounting Direction Free
    No Part Number
    1 110-4E1-83-PLL DC24V
    2 110-4E1-83-PSL DC24V
    3 110-4E1 AC100V
    4 110-4E1 DC24V
    5 110-4E1-J42-PSL AC100V
    6 110-4E1-J63-83-PSL DC24V
    7 110-4E1-J63 DC24V
    8 110-4E1-PLL AC100V
    9 110-4E1-PLL DC24V
    10 110-4E1-PSL AC100V
    11 110-4E1-PSL DC24V
    12 110-4E1-PSLN DC24V
    13 110-4E2 AC100V
    14 110-4E2 DC24V
    15 110-4E2-PSL AC100V
    16 110-4E2-PSL DC24V
    17 111E1-2-J62 DC24V
    18 A110-4E1-83-PLL DC24V
    19 A110-4E1-PSL DC24V
