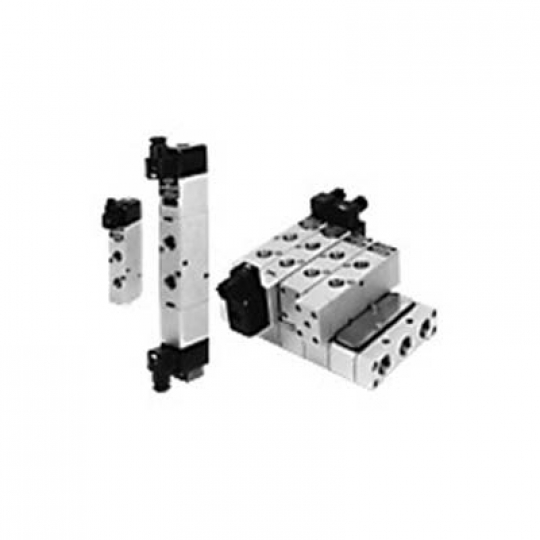

Van điện từ 600-4E1, 600-4E2, 603-4E2, A600-4E1, A600-4E2, A603-4E2 Koganei
Product Description
Series of large flow valves with effective sectional area 60 mm2 that is optimal for driving air cylinders of ø100 to ø180. Note: CAD data of this series is being revised. Please wait till the corrections are done.
Basic form and valve function
| Item | Basic Form | ||
|---|---|---|---|
| 600-4E1 | 600-4E2 | 603-4E2 | |
| A600-4E1 | A600-4E2 | A603-4E2 | |
| Number of positions | 2 | 3 | |
| Number of ports | 5 | ||
| Valve Functions | Single solenoid | Double solenoid | Double solenoid |
| Item | Basic Form | |||
|---|---|---|---|---|
| 600-4E1 | 600-4E2 | 603-4E2 | ||
| A600-4E1 | A600-4E2 | A603-4E2 | ||
| Operating fluid | Air | |||
| Operating method | Internal Pilot Type | |||
| Flow rate characteristics | Sonic conductance Cdm^3 / (s*bar)^*1 | 12 | ||
| Effective cross-sectional area [Cv value] mm^2 | 60 [3.33] | |||
| Piping connection diameter^*2 | Rc1/2 or Rc3/8 | |||
| Lubrication | Not required | |||
| Operating Pressure Range MPa | 0.15 to 0.9 | 0.2 to 0.9 | ||
| Proof pressure (MPa) | 1.35 | |||
| Response time (ms) When ON/OFF |
24 V DC | 40/40 or less | 25 or less | 35 or Less |
| 100 V AC, 200 V AC | 35/40 or less | 25 or less | 35 or Less | |
| Maximum operating frequency Hz | 2 | 1 | ||
| Minimum excitation time required for self-holding ms | — | 50 | ||
| Operating temperature range (atmosphere and operating fluid)°C | +5 to +50 | |||
| Impact resistance m/s^2 | 980.7 | |||
| Mounting Direction | Free | |||
*1: The value of sonic conductance is a calculated value, not an actual measurement value *2: For details, see the table of pipe connection diameters.
Electrical Specifications
| Item | Rated Voltage | ||||||
|---|---|---|---|---|---|---|---|
| 24 V DC | 100 V AC | 200 V AC | |||||
| Method | — | AC solenoid (Shading coil method) | |||||
| Operating voltage range V | 21.6 to 26.4 (24±10%) |
90 to 130 [100 (-10 to +30)%] |
180 to 260 [100 (-10 to +30)%] |
||||
| Current (When rated voltage is applied) |
Frequency Hz | — | 50 | 60 | 50 | 60 | |
| Starting mA (r.m.s) | — | 106 | 94 | 51 | 46 | ||
| Excitation^* mA (r.m.s) | 240 [252 (6.0W)] | 55 [57] | 44 [44] | 27 [26] | 22 [21] | ||
| Insulation resistance MΩ | 100 or More | ||||||
| Connection Method | With terminal | ||||||
| Lead Wire Color | Red | Yellow | White | ||||
| Led Indicator Color | Red | Yellow | White | ||||
| Surge prevention | — | (With LED indicator is with surge absorber) | |||||
*: [] is for a solenoid with LED indicator
Manifold piping connection diameter
| Manifold Type | Port | Piping connection position | Piping connection port diameter |
|---|---|---|---|
| LM□F | 1 (P), 3 (R2), 5 (R1) | Manifold | Rc3/4 |
| 4 (A), 2 (B) | Valve | Rc1/2, Rc3/8 | |
| LM□A | 1 (P), 3 (R2), 5 (R1) | Manifold | Rc3/4 |
| 4 (A), 2 (B) | Manifold | Rc1/2, Rc3/8 |
| Control Equipment Standard Electromagnetic Valve 600 Series | |
| 1 | 600-4E1-03-21 AC200V |
| 2 | 600-4E1-03 AC200V |
| 3 | 600-4E1-21 AC100V |
| 4 | 600-4E1-21 DC24V |
| 5 | 600-4E1 AC100V |
| 6 | 600-4E1 AC200V |
| 7 | 600-4E1 DC24V |
| 8 | 600-4E2-03-81 AC100V |
| 9 | 600-4E2-03-81 DC24V |
| 10 | 600-4E2-03-81-L AC100V |
| 11 | 600-4E2-03 AC100V |
| 12 | 600-4E2-03 AC200V |
| 13 | 600-4E2-03 DC24V |
| 14 | 600-4E2-81 AC100V |
| 15 | 600-4E2-81 AC200V |
| 16 | 600-4E2-81 DC24V |
| 17 | 600-4E2-81-L AC100V |
| 18 | 600-4E2 AC100V |
| 19 | 600-4E2 AC200V |
| 20 | 600-4E2 DC24V |
| 21 | 603-4E2-03-13-81 DC24V |
| 22 | 603-4E2-03-13 AC100V |
| 23 | 603-4E2-03-13 DC24V |
| 24 | 603-4E2-03-81 AC200V |
| 25 | 603-4E2-03-81 DC24V |
| 26 | 603-4E2-03 AC100V |
| 27 | 603-4E2-03 AC200V |
| 28 | 603-4E2-03 DC24V |
| 29 | 603-4E2-03-L AC100V |
| 30 | 603-4E2-13-81 AC100V |
| 31 | 603-4E2-13-81 AC200V |
| 32 | 603-4E2-13-81 DC24V |
| 33 | 603-4E2-13 AC100V |
| 34 | 603-4E2-13 AC200V |
| 35 | 603-4E2-13 DC24V |
| 36 | 603-4E2-13-L AC200V |
| 37 | 603-4E2-81 AC100V |
| 38 | 603-4E2-81 AC200V |
| 39 | 603-4E2-81 DC24V |
| 40 | 603-4E2 AC100V |
| 41 | 603-4E2 AC200V |
| 42 | 603-4E2 DC24V |
| 43 | 603-4E2-L AC100V |
| 44 | 603-4E2-L DC24V |
| 45 | A600-4E1-03-25-81 AC200V |
| 46 | A600-4E1-03-25-81 DC24V |
| 47 | A600-4E1-03-25 AC100V |
| 48 | A600-4E1-03-25 AC200V |
| 49 | A600-4E1-03-25 DC24V |
| 50 | A600-4E1-25-81 AC100V |
| 51 | A600-4E1-25-81 DC24V |
| 52 | A600-4E1-25 AC100V |
| 53 | A600-4E1-25 AC200V |
| 54 | A600-4E1-25 DC24V |
| 55 | A600-4E1-25-L AC100V |
| 56 | A600-4E1-25-L AC200V |
| 57 | A600-4E1 AC200V |
| 58 | A600-4E1 DC24V |
| 59 | A600-4E1-L AC200V |
| 60 | A600-4E2-03-25-81 AC100V |
| 61 | A600-4E2-03-25-81 DC24V |
| 62 | A600-4E2-03-25 AC100V |
| 63 | A600-4E2-03-25 DC24V |
| 64 | A600-4E2-25-81 DC24V |
| 65 | A600-4E2-25-81-L DC24V |
| 66 | A600-4E2-25 AC100V |
| 67 | A600-4E2-25 AC200V |
| 68 | A600-4E2-25 DC24V |
| 69 | A600-4E2-81 DC24V |
| 70 | A600-4E2 AC100V |
| 71 | A600-4E2 AC200V |
| 72 | A600-4E2 DC24V |
| 73 | A603-4E2-03-25-81 AC200V |
| 74 | A603-4E2-03-25-81 DC24V |
| 75 | A603-4E2-03-25 AC100V |
| 76 | A603-4E2-03-25 DC24V |
| 77 | A603-4E2-13-25-81 DC24V |
| 78 | A603-4E2-13-25 AC200V |
| 79 | A603-4E2-13-25 DC24V |
| 80 | A603-4E2-13 AC200V |
| 81 | A603-4E2-13 DC24V |
| 82 | A603-4E2-25-81 AC200V |
| 83 | A603-4E2-25-81 DC24V |
| 84 | A603-4E2-25 AC100V |
| 85 | A603-4E2-25 AC200V |
| 86 | A603-4E2-25 DC24V |
| 87 | A603-4E2 AC100V |
| 88 | A603-4E2 AC200V |
| 89 | A603-4E2 DC24V |
