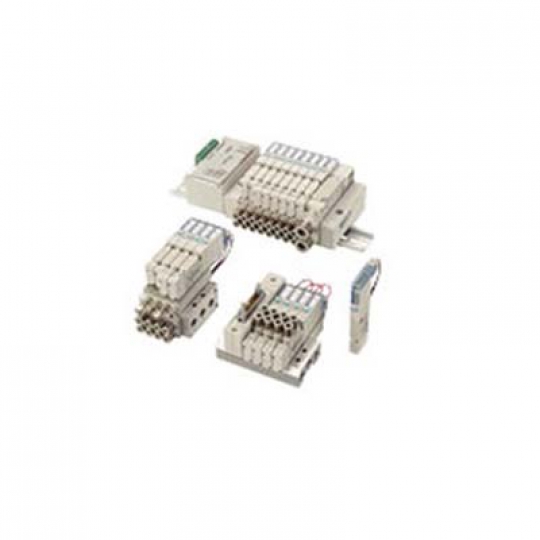

Van điện từ F15T0, F15T1, F15T2, F15T3 Koganei
Product Description
A pneumatic solenoid valve that has been further enhanced by the thorough pursuit of ease of use.
[Features]
·Supports cylinder diameters of 40 to 80 mm, valve width of 15 mm, and low power consumption
·Providing a new form of solenoid valve with a wide range of variations such as single/double types and reducer fittings
[Application]
・ Compatible with pneumatic equipment and production lines in all industries
new form of solenoid valve with a wide range of variations
| Item | Basic part number | |||
|---|---|---|---|---|
| F15□T0 | F15□T1 F15□T2 |
F15□T3 F15□T4 F15□T5 |
F15□TA F15□TB F15□TC |
|
| Number of positions | 2 Positions | 3 position | 4 Position Type | |
| Number of ports | 5 | Tandem 3 port | ||
| Valve Functions | For Single Solenoid | Single solenoid, double solenoid dual-purpose type | Closed center, exhaust center, pressure center | NC/NC, NO/NO, NC/NO |
| Item | Basic part number | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| F15□ T0F15□ T1F15□ T2 |
F15□ T3F15□ T4F15□ T5 |
F15□ TAF15□ TBF15□ TC |
F15□ T0GF15□ T1GF15□ T2G |
F15□ T3GF15□ T4GF15□ T5G |
F15□ T0VF15□ T1VF15□ T2V |
F15□T3V | |||
| Operating fluid | Air | ||||||||
| Operating method | Internal Pilot Type | External Pilot Type (for original pressure) | External pilot type (For vacuum) | ||||||
| Flow rate | Sonic conductance C dm^3 / (s*bar) | 2.05 | 2.05 | 1.6 | 2.05 | 2.05 | 2.05 | 2.05 | |
| Characteristic | Effective cross-sectional area [Cv value] mm^2 | 10.3 [0.57] | 10.3 [0.57] | 8 [0.44] | 10.3 [0.57] | 10.3 [0.57] | 10.3 [0.57] | 10.3 [0.57] | |
| Piping connection port diameter | ø6, ø8 dual-use fitting, Rc1/8 | M5 × 0.8, ø6, ø8 dual-use fitting, Rc1/8 | |||||||
| Lubrication | Not required | ||||||||
| Operating pressure range | Main valve | 0.15 to 0.7 MPa | 0 to 0.7 MPa | -100 kPa to 0.15 MPa | |||||
| External pilot | — | 0.2 to 0.7 MPa | 0.2 to 0.7 MPa | ||||||
| Proof pressure resistant MPa | 1.05 | ||||||||
| Response time | ms | 12 V DC, 24 V DC | 20/25 (30) or less | 15/45 (50) or less | 20/30 (35) or less | 20/25 (30) or less | 15/45 (50) or less | 20/25 (30) or less | 15/45 (50) or less |
| When ON/OFF | 100 V AC | 20/25 or less | 15/45 or less | — | 20/25 or less | 15/45 or less | 20/25 or less | 15/45 or less | |
| Maximum operating frequency: Hz | 5 | ||||||||
| Minimum excitation time required for self-holding ms | 50 | — | 50 | — | 50 | — | |||
| Operating temperature range (atmosphere and operating fluid)°C | 5 to 50 | ||||||||
| Impact resistance m/s^2 | 294.2 | ||||||||
| Mounting Direction | Free | ||||||||
| Item | Rated Voltage | ||||||
|---|---|---|---|---|---|---|---|
| 12 V DC | 24 V DC (Standard type) | 24 V DC (Low current type) | 100 V AC | ||||
| Operating Voltage Range: V | 10.8 to 13.2 (12±10%) |
21.6 to 26.4 (24±10%) |
21.6 to 26.4 (24±10%) |
90 to 110 (100±10%) |
|||
| Rated frequency Hz | — | — | — | 50 | 60 | ||
| Standard | Current value (When rated voltage is applied): mA (r.m.s) | 33 | 17 | — | 8 | ||
| Power consumption W | 0.4 | 0.4 | — | 0.8VA | |||
| Low-Current Type | Current (When rated voltage is applied) | Starting mA | — | — | 17 | — | |
| Constant mA | 4.2 | ||||||
| Power consumption | Starting mA | — | — | 0.4 | — | ||
| Constant mA | 0.1 | ||||||
| Startup time (standard time) ms | — | — | 70 | — | |||
| Allowable Circuit Leakage Current: mA | 2.0 | 1.0 | 1.0 | 1.0 | |||
| Insulation Type | Type B | ||||||
| Insulation resistance MΩ | 100 or More | ||||||
| Led Indicator Color | 14 (SA): Red, 12 (SB): Green | ||||||
| Surge Protection (Standard Equipment) | Surge absorption transistor | Flywheel diode | Bridge diode | ||||
| Control Unit Standard Solenoid Valve F15 Series | |
| 1 | F15T0-A1 DC24V |
| 2 | F15T0-A1-PL3 DC24V |
| 23 | F15T0-A1-PL DC24V |
| 24 | F15T0-A1-PN DC24V |
| 25 | F15T0-A1-PS3 DC24V |
| 26 | F15T0-A1-PS DC24V |
| 27 | F15T0 DC24V |
| 28 | F15T0-FJ DC24V |
| 29 | F15T0-FJ-PL DC24V |
| 30 | F15T0-FJ-PN DC24V |
| 31 | F15T0-FJ-PS3 DC24V |
| 32 | F15T0-FJ-PS DC24V |
| 33 | F15T0-FM DC24V |
| 34 | F15T0-FM-PL DC24V |
| 35 | F15T0-FM-PN DC24V |
| 36 | F15T0-FM-PS3 DC24V |
| 37 | F15T0-FM-PS DC24V |
| 38 | F15T0-PL3 DC24V |
| 39 | F15T0-PL DC24V |
| 40 | F15T0-PN DC24V |
| 41 | F15T0-PS3 DC24V |
| 42 | F15T0-PS DC24V |
| 43 | F15T0-R DC24V |
| 44 | F15T0-R-PL3 DC24V |
| 45 | F15T0-R-PL DC24V |
| 46 | F15T0-R-PS3 DC24V |
| 47 | F15T0-R-PS DC24V |
| 48 | F15T1-A1 DC24V |
| 49 | F15T1-A1-PL3 DC24V |
| 50 | F15T1-A1-PL AC100V |
| 51 | F15T1-A1-PN DC24V |
| 52 | F15T1-A1-PS3 DC24V |
| 53 | F15T1-A1-PS AC100V |
| 54 | F15T1-A1-PS DC24V |
| 55 | F15T1 DC24V |
| 56 | F15T1-F3-PL DC24V |
| 57 | F15T1-F3-PN DC24V |
| 58 | F15T1-F3-PS DC24V |
| 59 | F15T1-F4-PL DC24V |
| 60 | F15T1-FJ DC24V |
| 61 | F15T1-FJ-PL3 DC24V |
| 62 | F15T1-FJ-PL AC100V |
| 63 | F15T1-FJ-PL DC24V |
| 64 | F15T1-FJ-PN DC24V |
| 65 | F15T1-FJ-PS3 DC24V |
| 66 | F15T1-FJ-PS AC100V |
| 67 | F15T1-FJ-PS DC24V |
| 68 | F15T1-FM DC24V |
| 69 | F15T1-FM-PL3 DC24V |
| 70 | F15T1-FM-PL DC24V |
| 71 | F15T1-FM-PS DC24V |
| 72 | F15T1-PL3 DC24V |
| 73 | F15T1-PL DC24V |
| 74 | F15T1-PN DC24V |
| 75 | F15T1-PS3 DC24V |
| 76 | F15T1-PS DC24V |
| 77 | F15T1-R DC24V |
| 78 | F15T1-R-PL DC24V |
| 79 | F15T1-R-PN DC24V |
| 80 | F15T1-R-PS3 DC24V |
| 81 | F15T1-R-PS DC24V |
| 82 | F15T2-A1 DC24V |
| 83 | F15T2-A1-PL3 DC24V |
| 84 | F15T2-A1-PL AC100V |
| 85 | F15T2-A1-PL DC24V |
| 86 | F15T2-A1-PN DC24V |
| 87 | F15T2-A1-PS3 DC24V |
| 88 | F15T2-A1-PS AC100V |
| 89 | F15T2-A2-PS DC24V |
| 90 | F15T2 DC24V |
| 91 | F15T2-F3-PS3 DC24V |
| 92 | F15T2-F4-PL3 DC24V |
| 93 | F15T2-FJ5 DC24V |
| 94 | F15T2-FJ5-PL3 DC24V |
| 95 | F15T2-FJ5-PL DC24V |
| 96 | F15T2-FJ5-PN DC24V |
| 97 | F15T2-FJ5-PS3 DC24V |
| 98 | F15T2-FJ5-PS DC24V |
| 99 | F15T2-FJ DC24V |
| 100 | F15T2-FJ-PL3 DC24V |
| 101 | F15T2-FJ-PL AC100V |
| 102 | F15T2-FJ-PL DC24V |
| 103 | F15T2-FJ-PN DC24V |
| 104 | F15T2-FJ-PS3 DC24V |
| 105 | F15T2-FJ-PS AC100V |
| 106 | F15T2-FJ-PS DC24V |
| 107 | F15T2-FM DC24V |
| 108 | F15T2-FM-PL3 DC24V |
| 109 | F15T2-FM-PL DC24V |
| 110 | F15T2-FM-PN DC24V |
| 111 | F15T2-FM-PS DC24V |
| 112 | F15T2-PL3 DC24V |
| 113 | F15T2-PL DC24V |
| 114 | F15T2-PN DC24V |
| 115 | F15T2-PS3 DC24V |
| 116 | F15T2-PS DC24V |
| 117 | F15T2-R-A1 DC24V |
| 118 | F15T2-R-A1-PN DC24V |
| 119 | F15T2-R-A1-PS3 DC24V |
| 120 | F15T2-R-A1-PS DC24V |
| 121 | F15T2-R DC24V |
| 122 | F15T2-R-PL3 DC24V |
| 123 | F15T2-R-PN DC24V |
| 124 | F15T2-R-PS3 DC24V |
| 125 | F15T2-R-PS DC24V |
| 126 | F15T3-A1 DC24V |
| 127 | F15T3-A2-PS DC24V |
| 128 | F15T3-PS DC24V |
