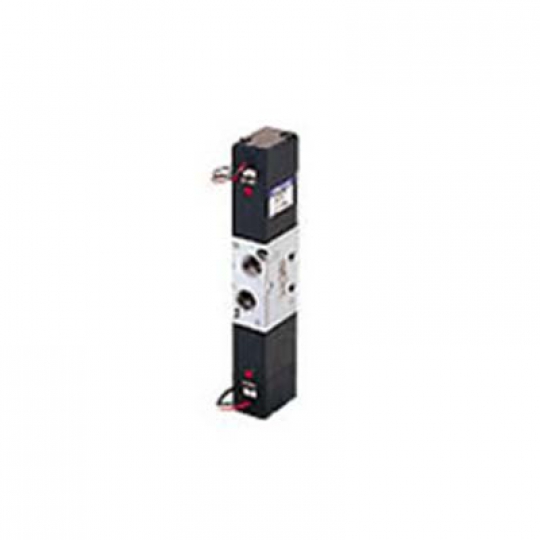

Van điện từ khí nén 240-4E1, 240-4E2, 243-4E2 , W240-4E1, W240-4E2, W243-4E2, A240-4E1, A240-4E2, A243-4E2, W240-4E1, W240-4E2, W243-4E2 Koganei

Pneumatic solenoid valve pursuing field-side applications.

·Ideal for drive control of middle-sized actuators such as cylinders with a diameter of 63 to 100 mm
·Lead connection, stacking method manifold, a wide range of variations
·Uses 24 V DC-65 mA (1.6 W) and low ammeter solenoid
·Reliability is also improved, such as suppressing heat generation

Giá:
Liên hệ
Lượt xem:
760

Thông tin sản phẩm
Bình luận

Product Description

Pneumatic solenoid valve pursuing field-side applications.

Features
·Ideal for drive control of middle-sized actuators such as cylinders with a diameter of 63 to 100 mm
·Lead connection, stacking method manifold, a wide range of variations
·Uses 24 V DC-65 mA (1.6 W) and low ammeter solenoid
·Reliability is also improved, such as suppressing heat generation

Application
・ Compatible with pneumatic equipment and production lines in all industries

Item
	Solenoid specifications	Single solenoid	Double solenoid	3-position double solenoid
	For direct piping For F type manifold	240-4E1	240-4E2	243-4E2
	For standard type sub-bass For A-type and B-type manifolds	A240-4E1	A240-4E2	A243-4E2
	For plug-in type sub-bass For AW type and BW type manifolds	W240-4E1	W240-4E2	W243-4E2
Operating fluid		Air
Operating method		Internal Pilot Type
Number of positions / ports		2 positions and 5 ports		3 positions and 5 ports
Valve Functions		—		Closed center (standard) and exhaust center (Optional)
Flow rate characteristics	Sonic conductance C dm^3 / (sbar)^1	3.2 (2.26)^*2		3.0 (2.2)^*2
Flow rate characteristics	Effective cross-sectional area [Cv value] mm^2	16 [0.88] (11.3 [0.62])^*2		15 [0.83] (11 [0.61])^*2
Piping connection port diameter		P, A, B: Rc1/4 R: Rc1/8 (P, A, B, R: Rc1/4 PR: Rc1/8)^*3
Lubrication		Not required
Operating pressure range MPa		0.17 to 0.7
Proof pressure resistant MPa		1.05
Response time ON / OFF ms	24 V DC	25/35	20/20	25/55
Response time ON / OFF ms	100 V AC, 200 V AC	25/25	20/20	25/45
Operating temperature range (atmosphere and operating fluid)°C		+5 to +50
Impact resistance m/s^2	In-line	1,373.0
Impact resistance m/s^2	Axial direction	451.1	264.8	588.4
Mounting Direction		Free
Maximum operating frequency: Hz		5
Minimum excitation time required for operation ms		—	50	—
Weight g		160 (350^4 ,400^5)	230 (420^4, 470^5)	260 (450^4, 500^5)

*1: The value of sonic conductance is a calculated value, not an actual measurement value.
*2: In the case of A240-4E□W240-4E□.
*3: Subspace piping connection diameter.
*4: A240-4E□ with subspace weight.
*5: W240-4E□ with subspace weight.

Electrical Specifications

Item			Rated Voltage
Item			100 V AC		200 V AC		24 V DC
Method			Shading method				For surge prevention Built-in flywheel diode
Operating Voltage Range: V			90 to 132 [100 (-10 to +32)%]		180 to 264 [200 (-10 to +32)%]		21.6 to 26.4 (24±10%)
Current (When rated voltage is applied)	Frequency Hz		50	60	50	60	—
	Starting mA (r.m.s.)		34	32	17	16	—
	Excitation mA (r.m.s.)		22	20	11	10	65 (1.6W) [75 (1.8 W) with LED indicator]
Allowable circuit leakage current value mA			4		2		4
Insulation resistance MΩ			100 or More
Connection Method	Standard type	Standard	Grommet type: 300 mm
	Standard type	Option	Plug connector type Straight connector -PS: 300 mm * -PSN: No leads (With connector and contacts) L Connector -PL: 300 mm * -PLN: No leads (With connector and contacts) * Optional 1,000 and 3,000 mm are also available. -1L: 1000, -3L: Please specify separately when ordering at 3,000.
	Plug-in type		Terminal type (The sub-base has a conduit cover and the manifold has a terminal cover)
Lead Wire Color			Yellow		White		Red (+), black (-)
LED indicator (optional) color			Yellow		Green		Red
Surge prevention			Varistor built-in option				Flywheel diode (standard equipment)

Manifold specifications and piping connection diameter

Manifold Type	Specifications	Piping connection port diameter			Compatible valve type	Remarks
240M□F	1 (P) / 3 (R2), 5 (R1) Manifold piping 4 (A), 2 (B) Valve piping	1 (P)		Rc1/4	240-4E1 240-4E2 243-4E2	PR cannot be piped.
		4 (A), 2 (B)
		3 (R2), 5 (R1)
240M□A	All ports Manifold piping	1 (P)		Rc1/4	A240-4E1 A240-4E2 A243-4E2
		4 (A), 2 (B)
		3 (R2), 5 (R1)
		PR		Rc1/8
240M□AW	All ports Manifold piping Plug-in type	1 (P)		Rc1/4	W240-4E1 W240-4E2 W243-4E2
		4 (A), 2 (B)
		3 (R2), 5 (R1)
		PR		Rc1/8
240M□B	All ports Manifold piping With bottom port	End plate and side ports	1 (P)	Rc1/4	A240-4E1 A240-4E2 A243-4E2	The 1 (P), 4 (A), 2 (B), 3 (R2), and 5 (R1) ports can be split together to select the end plate, side, or bottom. (PR is for end plates only)
			4 (A), 2 (B)
			3 (R2), 5 (R1)
			PR	Rc1/8
		Bottom port	1 (P)	Rc1/8
			4 (A), 2 (B)
			3 (R2), 5 (R1)
240M□BW	All ports Manifold piping With bottom port Plug-in type	End plate and side ports	1 (P)	Rc1/4	W240-4E1 W240-4E2 W243-4E2	The 1 (P), 4 (A), 2 (B), 3 (R2), and 5 (R1) ports can be split together to select the end plate, side, or bottom. (PR is for end plates only)
			4 (A), 2 (B)
			3 (R2), 5 (R1)
			PR	Rc1/8
		Bottom port	1 (P)	Rc1/8
			4 (A), 2 (B)
			3 (R2), 5 (R1)

Manifold weight

Manifold Type	Weight calculation formula for each number of stations (n = number of stations)	Mounting valve									Block plate
Manifold Type		240-4E1	240-4E2	243-4E2	A240-4E1	A240-4E2	A243-4E2	W240-4E1	W240-4E2	W243-4E2	Block plate
240M□F	(69 × n) + 69	160	230	260	—	—	—	—	—	—	30
240M□A	(167 × n) + 217	—	—	—	160	230	260	—	—	—
240M□AW	(199 × n) + 270				—	—	—	160	230	260
240M□B	(167 × n) + 217				160	230	260	—	—	—
240M□BW	(199 × n) + 270				—	—	—	160	230	260

Product features details

The 240 series, which is suitable for driving medium-sized cylinder (ø63 to 100: diameter 63 to 100 mm), pursues functionality from all aspects.
In addition to the 5-port / 2-position type, a 3-position type with a closed center and an exhaust center has also been made into a series.
A plug-in type electrical wiring connection was provided between the solenoid valve and the sub-base, and between the solenoid valve and the manifold base.
Therefore, the solenoid valve can be removed without touching the electrical wiring part.
Since the manifold base is independent for each solenoid valve, the number of stations can be freely increased or decreased.
Since the manifold bases can be stocked by single unit, cost reduction is possible.
Piping can be pulled out from the back of the solenoid valve (bottom of the manifold).
By using a split (station separation plug), multiple pressures can be supplied by 1 manifold.
