Van điện từ G010E1, GA010LE1, GA010E1, G010LE1, G010HE1 Koganei
Product Description

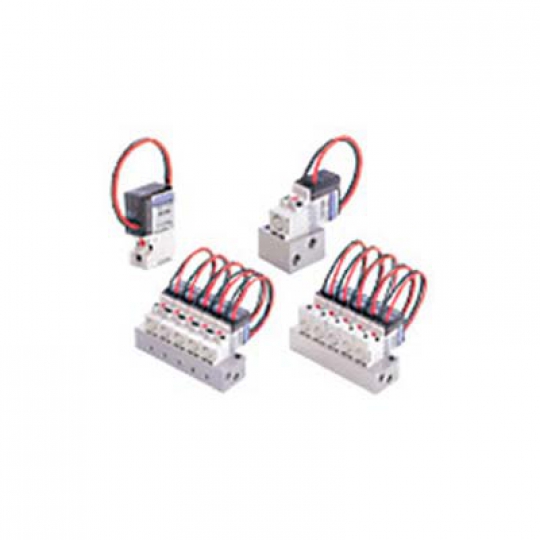

Pneumatic solenoid valve with a lineup of low current type that achieves power consumption of 0.5 W and large flow rate type with high speed response.
[Features]
·Positive pressure / normally open (NO) specifications are also available, making it possible to make the one of the best choice for various control needs
·There is also a vacuum specification
·It is now possible to select the one of the best control system for machines and equipment on the production line
[Application]
・ Compatible with pneumatic equipment and production lines in all industries
| Item | Basic Form | |||||||
|---|---|---|---|---|---|---|---|---|
| Direct piping / F-shaped manifold | A type manifold | |||||||
| G010E1 (Standard) |
G010LE1 (Low current) |
G010HE1 (Large flow rate) |
GA010E1 (Standard) |
GA010LE1 (Low current) |
GA010HE1 (Large flow rate) |
|||
| Operating fluid | Air | |||||||
| Operating method | Linear Motion Type | |||||||
| Flow rate characteristics | Sonic conductance C dm^3 / (s*bar)^*1 |
1 (P) ⇒2 (A) | 0.04 | 0.02 | 0.09 | 0.04 | 0.02 | 0.09 |
| 2 (A) ⇒3 (R) | 0.06 | 0.04 | 0.12 | 0.06 | 0.04 | 0.12 | ||
| Effective cross-sectional area [Cv value]^*2 mm^2 |
1 (P) ⇒2 (A) | 0.2 [0.011] | 0.1 [0.006] | 0.45 [0.025] | 0.2 [0.011] | 0.1 [0.006] | 0.45 [0.025] | |
| 2 (A) ⇒3 (R) | 0.3 [0.017] | 0.2 [0.011] | 0.6 [0.033] | 0.3 [0.017] | 0.2 [0.011] | 0.6 [0.033] | ||
| Piping connection diameter^*3 | M3 × 0.5 | M5 × 0.8 | ||||||
| Lubrication | Not required | |||||||
| Operating Pressure Range MPa | 0 to 0.7 | |||||||
| Proof pressure (MPa) | 1.05 | |||||||
| Response time^*4 ON / OFF ms |
4/8 | 5/10 | 3/6 | 4/8 | 5/10 | 3/6 | ||
| Maximum operating frequency Hz | 5 | |||||||
| Operating temperature range (atmosphere and operating fluid)°C^*5 | +5 to +50 | |||||||
| Impact resistance m/s^2 | 1,373.0 (Axial direction 196.2) | |||||||
| Rated voltage^*6 | (5 V DC, 6 V DC) 12 V DC, 24 V DC 100 V AC, (200 V AC) |
(5 V DC, 6 V DC) 12 V DC, 24 V DC |
(12 V DC) 24 V DC |
(5 V DC, 6 V DC) 12 V DC, 24 V DC 100 V AC, (200 V AC) |
(5 V DC, 6 V DC) 12 V DC, 24 V DC |
(12 V DC) 24 V DC |
||
| Mounting Direction | Free | |||||||
| Item | Basic Form | |||||||
|---|---|---|---|---|---|---|---|---|
| Direct piping / F-shaped manifold | A type manifold | |||||||
| G010E1-11 (Standard) |
G010LE1-11 (Low current) |
G010HE1-11 (Large flow rate) |
GA010E1-11 (Standard) |
GA010LE1-11 (Low current) |
GA010HE1-11 (Large flow rate) |
|||
| Operating fluid | Air | |||||||
| Operating method | Linear Motion Type | |||||||
| Flow rate characteristics | Sonic conductance C dm^3 / (s*bar)^*1 |
2 (A) ⇒1 (P) | 0.06 | 0.03 | 0.11 | 0.06 | 0.03 | 0.11 |
| 3 (R) ⇒2 (A) | 0.04 | 0.02 | 0.09 | 0.04 | 0.02 | 0.09 | ||
| Effective cross-sectional area [Cv value]^*2 mm^2 |
2 (A) ⇒1 (P) | 0.3 [0.017] | 0.15 [0.008] | 0.55 [0.031] | 0.3 [0.017] | 0.15 [0.008] | 0.55 [0.031] | |
| 3 (R) ⇒2 (A) | 0.2 [0.011] | 0.1 [0.006] | 0.45 [0.025] | 0.2 [0.011] | 0.1 [0.006] | 0.45 [0.025] | ||
| Piping connection diameter^*3 | M3 × 0.5 | M5 × 0.8 | ||||||
| Lubrication | Not required | |||||||
| Operating Pressure Range MPa | 0 to 0.7 | 0 to 0.5 | 0 to 0.7 | 0 to 0.5 | ||||
| Proof pressure (MPa) | 1.05 | |||||||
| Response time^*4 ON / OFF ms |
4/8 | 5/10 | 3/6 | 4/8 | 5/10 | 3/6 | ||
| Maximum operating frequency Hz | 5 | |||||||
| Operating temperature range (atmosphere and operating fluid)°C^*5 | +5 to +50 | |||||||
| Impact resistance m/s^2 | 1,373.0 (Axial direction 196.2) | |||||||
| Rated voltage^*6 | (5 V DC, 6 V DC) 12 V DC, 24 V DC 100 V AC, (200 V AC) |
(5 V DC, 6 V DC) 12 V DC, 24 V DC |
(12 V DC) 24 V DC |
(5 V DC, 6 V DC) 12 V DC, 24 V DC 100 V AC, (200 V AC) |
(5 V DC, 6 V DC) 12 V DC, 24 V DC |
(12 V DC) 24 V DC |
||
| Mounting Direction | Free | |||||||
| Air supply port | 3 (R) port | |||||||
