Van điện từ khí nén 010-4E1, A010-4E1, 010E1 Koganei
Product Description

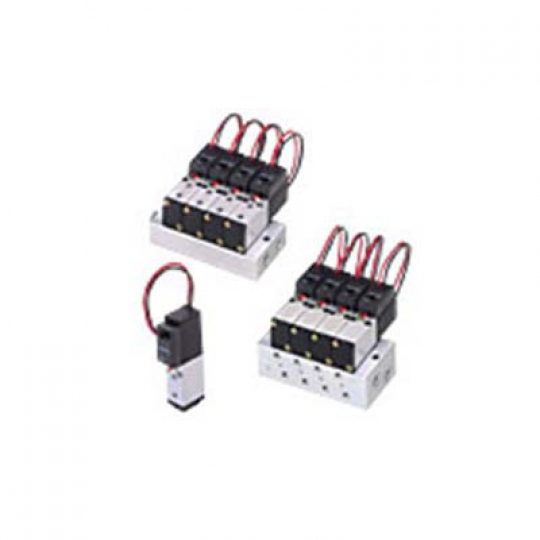

The solenoid valve 010 series has a basic performance of high reliability, powerful and low current in a thin body with a valve width of 10 mm. *This series is having CAD data modified. Please wait till the corrections are done.
Basic form and valve function
| Item | Basic Form | |
|---|---|---|
| Direct piping / F-shaped manifold | Sub-base piping / A-type manifold | |
| 010-4E1 | A010-4E1 | |
| Number of positions | 2 Positions | |
| Number of ports | 5 ports | |
| Valve Functions | Single solenoid | |
| Name | Materials | |
|---|---|---|
| Valve | Main body | Aluminum alloy (Anodizing) |
| Main shaft | ||
| Flapper | Synthetic rubber | |
| Mounting base | Mild steel (Zinc plating) | |
| Sub-Base | Aluminum alloy (Anodizing) | |
| Plunger | Electromagnetic stainless steel | |
| Column | ||
| Manifold | Main body | Aluminum alloy (Anodizing) |
| Block plate | Mild steel (Nickel plating) | |
| Packing | Synthetic rubber | |
| Item | Basic Form | ||
|---|---|---|---|
| Direct piping / F-shaped manifold | Sub-base piping / A-type manifold | ||
| 010-4E1 | A010-4E1 | ||
| Operating fluid | Air | ||
| Operating method | Internal Pilot Type | ||
| Flow rate characteristics | Sonic conductance C dm^3 / (s*bar)^*1 | 1 (P) ⇒4 (A) 0.04 4 (A) ⇒5 (R1), 2 (B) ⇒3 (R2) 0.06 | |
| Effective cross-sectional area (Cv value) mm^2 | 1 (P) ⇒4 (A) 0.2 (0.01) 4 (A) ⇒5 (R1), 2 (B) ⇒3 (R2) 0.3 [0.02] | ||
| Piping connection port diameter | M3 × 0.5 | ||
| Lubrication | Not required | ||
| Operating pressure range MPa | 0.15 to 0.7 | ||
| Proof pressure resistant MPa | 1.05 | ||
| Response time^*2 ON / OFF ms |
5 V DC, 12 V DC | 4/8 or less | |
| 6 V DC, 24 V DC | 4/8 or less | ||
| Maximum operating frequency: Hz | 5 | ||
| Minimum excitation time required for self-holding ms | — | ||
| Operating temperature range (atmosphere and operating fluid)°C | +5 to +50 | ||
| Impact resistance m/s^2 | 1,373.0 (Axial direction 392.3) | ||
| Mounting Direction | Free | ||
*1: The value of sonic conductance is a calculated value, not an actual measurement value.
*2: Value at air pressure 0.5 MPa
Electrical Specifications
| Item | Rated electricity | ||||
|---|---|---|---|---|---|
| 5 V DC | 6 V DC | 12 V DC | 24 V DC | ||
| Method | Built-in flywheel diode for surge prevention | ||||
| Operating voltage range DC V | 4.5 to 5.5 (5±10%) | 5.4 to 6.6 (6±10%) | 10.8 to 13.2 (12±10%) | 21.6 to 26.4 (24±10%) | |
| Current value (power consumption W when rated voltage is applied) mA | 246 (1.2) | 201 (1.2) | 103 (1.2) | 52 (1.2) | |
| Allowable circuit leakage current value mA | 30 | 25 | 15 | 5 | |
| Insulation resistance MΩ | 100 or More | ||||
| Connection Method | Standard | Grommet type | |||
| Option | Plug connector type | ||||
| Lead Length | 300 mm | ||||
| Lead Wire Color | Green (+) | Blue (+) | Brown (+) | Red (+) | |
| Black (-) | Black (-) | Black (-) | Black (-) | ||
| Led Indicator Color | Red | ||||
| Surge Protection (Standard Equipment) | Flywheel diode | ||||
| Small Electromagnetic Valve for Control Equipment, 010 Series | |
| 1 | 010-4E1-21 DC12V |
| 2 | 010-4E1-21 DC24V |
| 3 | 010-4E1-21-PLL-1L DC12V |
| 4 | 010-4E1-21-PLL-1L DC24V |
| 5 | 010-4E1-21-PLL-3L DC24V |
| 6 | 010-4E1-21-PLL DC12V |
| 7 | 010-4E1-21-PLL DC24V |
| 8 | 010-4E1-21-PSL-1L DC24V |
| 9 | 010-4E1-21-PSL DC12V |
| 10 | 010-4E1-21-PSL DC24V |
| 11 | 010-4E1 DC12V |
| 12 | 010-4E1 DC24V |
| 13 | 010-4E1-PLL-1L DC24V |
| 14 | 010-4E1-PLL DC24V |
| 15 | 010-4E1-PSL-1L DC24V |
| 16 | 010-4E1-PSL-3L DC24V |
| 17 | 010-4E1-PSL DC12V |
| 18 | 010-4E1-PSL DC24V |
| 19 | 010E1-2-21 DC24V |
| 20 | 010E1-2-21-PSL DC24V |
| 21 | 010E1-2 DC24V |
| 22 | 010E1-2-PSL DC24V |
| 23 | 010E1-21 DC12V |
| 24 | 010E1-21 DC24V |
| 25 | 010E1-21-PLL DC12V |
| 26 | 010E1-21-PSL DC24V |
| 27 | 010E1 DC12V |
| 28 | 010E1 DC24V |
| 29 | 010E1-PLL-1L DC24V |
| 30 | 010E1-PLL DC24V |
| 31 | 010E1-PSL DC12V |
| 32 | 010E1-PSL DC24V |
| 33 | A010-4E1-25-75 DC12V |
| 34 | A010-4E1-25-75 DC24V |
| 35 | A010-4E1-25-75-PLL DC24V |
| 36 | A010-4E1-25-75-PSL-1L DC24V |
| 37 | A010-4E1-25-75-PSL-3L DC24V |
| 38 | A010-4E1-25-75-PSL DC12V |
| 39 | A010-4E1-25-75-PSL DC24V |
| 40 | A010-4E1-25 DC12V |
| 41 | A010-4E1-25 DC24V |
| 42 | A010-4E1-25-PLL DC24V |
| 43 | A010-4E1-25-PSL DC12V |
| 44 | A010-4E1-25-PSL DC24V |
| 45 | A010-4E1 DC12V |
| 46 | A010-4E1 DC24V |
| 47 | A010-4E1-PLL-1L DC24V |
| 48 | A010-4E1-PLL DC12V |
| 49 | A010-4E1-PLL DC24V |
| 50 | A010-4E1-PSL-1L DC24V |
| 51 | A010-4E1-PSL DC12V |
