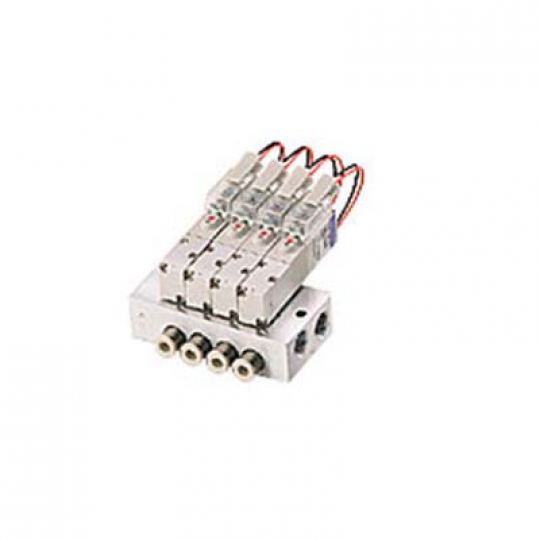

Van điện từ EB10A1, EB10A3, EB10A4, EB10F1, EB10F3, EB10F4, EB10LA1, EB10LA2, EB10LA3, EB10LF1, EB10LF2, EB10LF3, EB10SA1, EB10SA3, EB10SF3 Koganei

Small, easy to use, and simple. Low power consumption and high responsiveness to meet a vast range of needs. *This series is having CAD data modified. Please wait till the corrections are done.

Giá:
Liên hệ
Lượt xem:
806

Thông tin sản phẩm
Bình luận

Product features details

Achieve further low power consumption and high-speed responsiveness to meet diverse needs and professional control
Thin and compact shape: Valve width (10 mm), valve overall length (53 mm)
Efficient flow rate: Sonic conductance C "0.26dm^3 / (s*bar)" Ideal for pilot-operated valves and cylinder drive control up to ø25 (25 mm in diameter), etc.
Achieves high-speed response: Response time (6 ms when ON / 7 ms or less when OFF, (for high response type single solenoid))
Achieves low power consumption: Standard type (0.55 W), low current type (0.15W)
Improve reliability: The new solenoid structure and spindle structure, which are the culmination of valve technology, have improved basic performance such as lifespan and responsiveness, improving environmental friendliness: The grommet type is moisture-proof.

Material of main parts

Name		Materials
Valve	Main body	Aluminum alloy (Anodizing)
	Main shaft	Aluminum alloy (Anodizing)
	Lip seal	Synthetic rubber
	Flapper	Synthetic rubber
	Mounting Base	Mild steel (zinc plating)
	Sub-Base	Aluminum alloy (Anodizing)
	Plunger	Electromagnetic stainless steel
	Column	Electromagnetic stainless steel
	End cover	Resin
Manifold	Main body	Aluminum alloy (Anodizing)
	Block plate	Aluminum alloy (Anodizing)
	Packing	Synthetic rubber

Control Equipment Small Electromagnetic Valve EB Series
1	EB10A1-25-75-PL DC24V
2	EB10A1-25-75-PS3 DC24V
3	EB10A1-25-75-PS DC24V
4	EB10A1-25-GL DC24V
5	EB10A1-25-PL1 DC24V
6	EB10A1-25-PS1 DC24V
7	EB10A1-25-PS DC24V
8	EB10A1-GL DC24V
9	EB10A1-PL DC24V
10	EB10A1-PS DC24V
11	EB10A3-25-75-GL DC24V
12	EB10A3-25-75-PS3 DC24V
13	EB10A3-25-75-PS DC24V
14	EB10A3-25-GL DC24V
15	EB10A3-25-PL1 DC24V
16	EB10A3-25-PS1 DC24V
17	EB10A3-25-PS DC24V
18	EB10A3-81-PL DC24V
19	EB10A3-81-PS DC24V
20	EB10A3-GL DC24V
21	EB10A3-PL DC24V
22	EB10A3-PLN DC24V
23	EB10A3-PS1 DC24V
24	EB10A3-PS DC24V
25	EB10A3-PSN DC24V
26	EB10A4-25-75-PS DC24V
27	EB10A4-81-PL DC24V
28	EB10A4-GL DC24V
29	EB10A4-PS1 DC24V
30	EB10A4-PS DC24V
31	EB10F1-21-PL1 DC24V
32	EB10F1-21-PL DC24V
33	EB10F1-21-PS1 DC24V
34	EB10F1-21-PS DC24V
35	EB10F1-PL1 DC24V
36	EB10F1-PL DC24V
37	EB10F1-PS3 DC24V
38	EB10F1-PS DC24V
39	EB10F1-PSN DC24V
40	EB10F3-21-75-PS DC24V
41	EB10F3-21-81-PS DC24V
42	EB10F3-21-GL DC24V
43	EB10F3-21-PL DC24V
44	EB10F3-21-PS1 DC24V
45	EB10F3-21-PS DC24V
46	EB10F3-75-PS3 DC24V
47	EB10F3-81-PS DC24V
48	EB10F3-PL DC24V
49	EB10F3-PLN DC24V
50	EB10F3-PS1 DC24V
51	EB10F3-PS DC24V
52	EB10F4-21-PS DC24V
53	EB10F4-75-PL DC24V
54	EB10F4-PS DC24V
55	EB10LA1-25-81-PS DC24V
56	EB10LA1-25-PS DC24V
57	EB10LA1-81-PS DC24V
58	EB10LA2-25-81-PS DC24V
59	EB10LA2-81-PS DC24V
60	EB10LA3-25-75-81-PS DC24V
61	EB10LA3-25-75-PL1 DC24V
62	EB10LA3-25-81-PS DC24V
63	EB10LA3-25-PL DC24V
64	EB10LA3-81-PS DC24V
65	EB10LA3-PL DC24V
66	EB10LF1-21-81-PS1 DC24V
67	EB10LF1-PL DC24V
68	EB10LF2-PSN DC24V
69	EB10LF3-PSN DC24V
70	EB10SA1-25-PL1 DC24V
71	EB10SA1-25-PS1 DC24V
72	EB10SA1-25-PS3 DC24V
73	EB10SA1-25-PSN DC24V
74	EB10SA1-PL DC24V
75	EB10SA1-PSN DC24V
76	EB10SA3-25-75-PS3 DC24V
77	EB10SA3-25-75-PS DC24V
78	EB10SA3-PS1 DC24V
79	EB10SA3-PS3 DC24V
80	EB10SA3-PS DC24V
81	EB10SA3-PSN DC24V
82	EB10SF3-21-75-PS DC24V
83	EB10SF3-PS DC24V
