Van điện từ khí nén 180-4E1, 180-4E2, 181E1, 183-4E2, A180-4E1, A180-4E2, A180E1, A183-4E2 Koganei

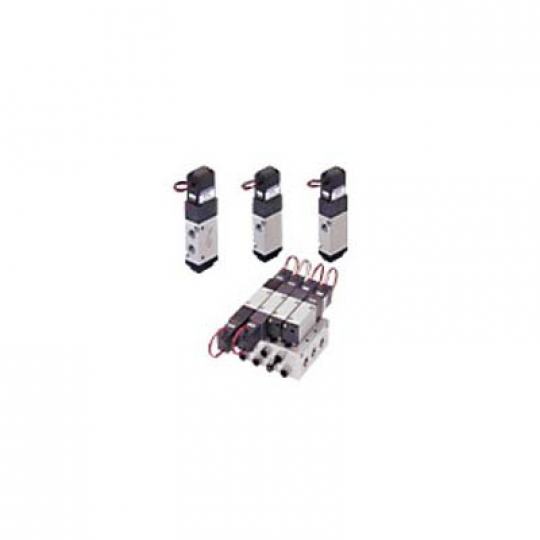

Standard Solenoid Valve 180 Series
Product Specifications
Highly reliable, powerful, and low current basic performance is firmly realized in a compact and low profile body
|
Item |
Basic part number |
|||||
|---|---|---|---|---|---|---|
|
Direct piping |
181E1 |
180-4E1 |
180-4KE2^* |
183-4E2 |
183-4KE2 |
|
|
Sub-base piping |
A181E1 |
A180-4E1 |
A180-4KE2^* |
A183-4E2 |
A183-4KE2 |
|
|
Number of positions |
2 Positions |
3 position |
||||
|
Number of ports |
2-3 ports |
5 ports |
||||
|
Valve Functions |
Normally closed (NC standard) |
Single solenoid |
Twin solenoid |
Closed center (standard) |
Closed center (standard) |
|
*: 180E1, A180E1 and 180-4KE2, A180-4KE2 are dedicated valves for mounting 2, 3, and 5 port mixing manifolds. Cannot be used alone. When using a 2 or 3 port valve with a single unit, use 181E1, A181E1, 25
|
Item |
Basic part number |
|||||||
|---|---|---|---|---|---|---|---|---|
|
Direct piping |
181E1 |
180-4E1 |
180-4KE2 |
— |
183-4E2 |
183-4KE2 |
— |
|
|
Sub-base piping |
A181E1 |
A180-4E1 |
A180-4KE2 |
A180-4ME2 |
A183-4E2 |
A183-4KE2 |
A183-4ME2 |
|
|
Operating fluid |
Air |
|||||||
|
Operating method |
Internal Pilot Type |
|||||||
|
Flow rate |
Sonic conductance C dm^3 / (s*bar)^*1 |
2.04 |
1.64 |
1.8 |
1.64 |
|||
|
Effective cross-sectional area [Cv value] mm^2 |
10.2 [0.57] |
8.2 [0.46] |
9.0 [0.50] |
8.2 [0.46] |
||||
|
Piping connection port diameter |
Rc1/8 |
|||||||
|
Lubrication |
Not required |
|||||||
|
Operating pressure range MPa |
0.15 to 0.7 |
|||||||
|
Proof pressure resistant MPa |
1.05 |
|||||||
|
Response time^*2 |
12 V DC,24 V DC |
15/25 or less |
15/25 [20] or less |
20 or less |
15/35 or less |
15/40 or less |
||
|
100 V AC, 200 V AC |
15/15 or less |
15/15 [15] or less |
— |
15/20 or less |
— |
|||
|
Maximum operating frequency: Hz |
5 |
|||||||
|
Minimum excitation time required for self-holding ms |
— |
50 (□180-4E2) |
50 |
— |
||||
|
Operating temperature range (atmosphere and operating fluid)°C |
5 to 50 |
|||||||
|
Impact resistance m/s^2 |
1373.0 (Axial direction 294.2) |
294.2 |
||||||
|
Mounting Direction |
Free |
|||||||
*1: The value of sonic conductance is a calculated value, not an actual measurement value*2: Value at air pressure 0.5 MPa. 180-4E2 / 180-4KE2 () and A180-4ME2 are from opposite positions, and 183-4E2 / 180-4KE2 / A180-4KE are from the closed center valve neutral state
|
Item |
Rated Voltage |
|||||||
|---|---|---|---|---|---|---|---|---|
|
12 V DC |
24 V DC |
100 V AC |
200 V AC |
24 V DC (Tandem solenoid) |
||||
|
Method |
For surge prevention |
Shading method |
Surge absorption transistor |
|||||
|
Operating Voltage Range: V |
10.8 to 13.2 |
21.6 to 26.4 |
90 to 132 |
180 to 264 |
21.6 to 26.4 |
|||
|
Current |
Frequency Hz |
— |
— |
50 |
60 |
50 |
60 |
— |
|
Starting mA (r.m.s) |
— |
— |
36 |
32 |
18 |
16 |
— |
|
|
Excitation mA (r.m.s) |
130 (1.6W) |
65 (1.6W) |
24 |
20 |
12 |
10 |
50 (1.2W) |
|
|
Allowable circuit leakage current value mA |
8 |
4 |
4 |
2 |
2 |
|||
|
Insulation resistance MΩ |
100 or More |
|||||||
|
Connection method and lead length |
Standard |
Grommet type: 300 mm |
Plug connector type: 300 mm |
|||||
|
Option |
Plug connector type: 300 mm |
— |
||||||
|
Lead Wire Color |
Brown (+) |
Red (+) |
Yellow |
White |
Red (SA) Black (COM) |
|||
|
Led Indicator Color |
Red |
Yellow |
Green |
Red |
||||
|
Surge Protection (Standard Equipment) |
Flywheel diode |
Varistor |
Surge absorption transistor |
|||||
|
No |
Part Number |
|
1 |
180-4E1-39-83 AC100V |
|
2 |
180-4E1-39-83 AC200V |
|
3 |
180-4E1-39 AC100V |
|
4 |
180-4E1-39 AC200V |
|
5 |
180-4E1-39-J62-83 AC100V |
|
6 |
180-4E1-39-J62-83 AC200V |
|
7 |
180-4E1-39-J62 AC100V |
|
8 |
180-4E1-39-J62 AC200V |
|
9 |
180-4E1-39-J63-83 AC100V |
|
10 |
180-4E1-39-J63-83 AC200V |
|
11 |
180-4E1-39-J63 AC200V |
|
12 |
180-4E1-83 AC100V |
|
13 |
180-4E1-83 AC200V |
|
14 |
180-4E1-83-PLL AC100V |
|
15 |
180-4E1-83-PLL AC200V |
|
16 |
180-4E1-83-PLL DC24V |
|
17 |
180-4E1-83-PLLN AC100V |
|
18 |
180-4E1-83-PSL AC100V |
|
19 |
180-4E1-83-PSL AC200V |
|
20 |
180-4E1-83-PSL DC24V |
|
21 |
180-4E1-83-PSLN AC100V |
|
22 |
180-4E1-83-PSLN AC200V |
|
23 |
180-4E1 AC100V |
|
24 |
180-4E1 AC200V |
|
25 |
180-4E1 DC24V |
|
26 |
180-4E1-J42-83 AC200V |
|
27 |
180-4E1-J42-83-PLL AC100V |
|
28 |
180-4E1-J42-83-PLL AC200V |
|
29 |
180-4E1-J42-83-PSL AC100V |
|
30 |
180-4E1-J42-83-PSL AC200V |
|
31 |
180-4E1-J42 AC100V |
|
32 |
180-4E1-J42 AC200V |
|
33 |
180-4E1-J42 DC24V |
|
34 |
180-4E1-J42-PLL AC100V |
|
35 |
180-4E1-J42-PSL AC100V |
|
36 |
180-4E1-J42-PSL AC200V |
|
37 |
180-4E1-J43-83-PSL AC200V |
|
38 |
180-4E1-J43 AC100V |
|
39 |
180-4E1-J43 AC200V |
|
40 |
180-4E1-J62-83 AC100V |
|
41 |
180-4E1-J62-83-PLL AC100V |
|
42 |
180-4E1-J62-83-PLL AC200V |
|
43 |
180-4E1-J62-83-PSL AC100V |
|
44 |
180-4E1-J62-83-PSL AC200V |
|
45 |
180-4E1-J62 AC100V |
|
46 |
180-4E1-J62 AC200V |
|
47 |
180-4E1-J62-PLL AC100V |
|
48 |
180-4E1-J62-PLL AC200V |
|
49 |
180-4E1-J62-PLLN AC200V |
|
50 |
180-4E1-J62-PSL AC100V |
|
51 |
180-4E1-J62-PSL AC200V |
|
52 |
180-4E1-J62-PSLN AC100V |
|
53 |
180-4E1-J63-83 AC100V |
|
54 |
180-4E1-J63-83 AC200V |
|
55 |
180-4E1-J63-83-PLL AC100V |
|
56 |
180-4E1-J63-83-PLL AC200V |
|
57 |
180-4E1-J63-83-PSL AC100V |
|
58 |
180-4E1-J63-83-PSL AC200V |
|
59 |
180-4E1-J63-83-PSLN AC200V |
|
60 |
180-4E1-J63 AC100V |
|
61 |
180-4E1-J63 AC200V |
|
62 |
180-4E1-J63 DC24V |
|
63 |
180-4E1-J63-PLL AC100V |
|
64 |
180-4E1-J63-PLL AC200V |
|
65 |
180-4E1-J63-PLL DC24V |
|
66 |
180-4E1-J63-PSL AC100V |
|
67 |
180-4E1-J63-PSL AC200V |
|
68 |
180-4E1-PLL AC200V |
|
69 |
180-4E1-PLL DC24V |
|
70 |
180-4E1-PLLN AC200V |
|
71 |
180-4E1-PSL AC100V |
|
72 |
180-4E1-PSL AC200V |
|
73 |
180-4E1-PSL DC24V |
|
74 |
180-4E1-PSLN AC100V |
|
75 |
180-4E1-PSLN AC200V |
|
76 |
180-4E2-39-83 AC100V |
|
77 |
180-4E2-39-83 AC200V |
|
78 |
180-4E2-39 AC100V |
|
79 |
180-4E2-39 AC200V |
|
80 |
180-4E2-39-J43 AC100V |
|
81 |
180-4E2-39-J62 AC100V |
|
82 |
180-4E2-39-J62 AC200V |
|
83 |
180-4E2-39-J63-83 AC100V |
|
84 |
180-4E2-39-J63 AC100V |
|
85 |
180-4E2-83 AC100V |
|
86 |
180-4E2-83 AC200V |
|
87 |
180-4E2-83-PLL AC100V |
|
88 |
180-4E2-83-PLL AC200V |
|
89 |
180-4E2-83-PSL AC100V |
|
90 |
180-4E2-83-PSL AC200V |
|
91 |
180-4E2-83-PSLN AC100V |
|
92 |
180-4E2-83-PSLN AC200V |
|
93 |
180-4E2 AC100V |
|
94 |
180-4E2 AC200V |
|
95 |
180-4E2 DC24V |
|
96 |
180-4E2-J42-83-PLL AC200V |
|
97 |
180-4E2-J42-83-PSL AC100V |
|
98 |
180-4E2-J42 AC100V |
|
99 |
180-4E2-J42 AC200V |
|
100 |
180-4E2-J42-PLL AC200V |
|
101 |
180-4E2-J42-PSL AC200V |
|
102 |
180-4E2-J43 AC100V |
|
103 |
180-4E2-J62-83 AC100V |
|
104 |
180-4E2-J62-83 AC200V |
|
105 |
180-4E2-J62-83-PLL AC100V |
|
106 |
180-4E2-J62-83-PLL AC200V |
|
107 |
180-4E2-J62-83-PSL AC100V |
|
108 |
180-4E2-J62-83-PSL AC200V |
|
109 |
180-4E2-J62 AC100V |
|
110 |
180-4E2-J62 AC200V |
|
111 |
180-4E2-J62-PLL AC100V |
|
112 |
180-4E2-J62-PLL AC200V |
|
113 |
180-4E2-J62-PSL AC100V |
|
114 |
180-4E2-J62-PSL AC200V |
|
115 |
180-4E2-J63-83 AC200V |
|
116 |
180-4E2-J63 AC100V |
|
117 |
180-4E2-J63 AC200V |
|
118 |
180-4E2-J63-PLL AC100V |
|
119 |
180-4E2-J63-PLL AC200V |
|
120 |
180-4E2-J63-PSL AC100V |
|
121 |
180-4E2-J63-PSL AC200V |
|
122 |
180-4E2-PLL AC200V |
|
123 |
180-4E2-PLL DC24V |
|
124 |
180-4E2-PLLN AC100V |
|
125 |
180-4E2-PSL AC100V |
|
126 |
180-4E2-PSL AC200V |
|
127 |
180-4E2-PSL DC24V |
|
128 |
180-4E2-PSLN AC100V |
|
129 |
181E1-2-39-83 AC100V |
|
130 |
181E1-2-39-83 AC200V |
|
131 |
181E1-2-39 AC100V |
|
132 |
181E1-2-39 AC200V |
|
133 |
181E1-2-39-J62 AC100V |
|
134 |
181E1-2-83 AC100V |
|
135 |
181E1-2-83 AC200V |
|
136 |
181E1-2-83-PLL AC100V |
|
137 |
181E1-2-83-PSL AC100V |
|
138 |
181E1-2-83-PSL AC200V |
|
139 |
181E1-2 AC100V |
|
140 |
181E1-2 AC200V |
|
141 |
181E1-2 DC24V |
|
142 |
181E1-2-J61 AC200V |
|
143 |
181E1-2-J62-83-PLL AC100V |
|
144 |
181E1-2-J62-83-PSL AC100V |
|
145 |
181E1-2-J62-83-PSL AC200V |
|
146 |
181E1-2-J62 AC100V |
|
147 |
181E1-2-J62 AC200V |
|
148 |
181E1-2-J62-PSL AC100V |
|
149 |
181E1-2-J62-PSL AC200V |
|
150 |
181E1-2-PLL AC100V |
|
151 |
181E1-2-PLL AC200V |
|
152 |
181E1-2-PSL AC100V |
|
153 |
181E1-2-PSL AC200V |
|
154 |
181E1-39-83 AC100V |
|
155 |
181E1-39-83 AC200V |
|
156 |
181E1-39 AC100V |
|
157 |
181E1-39 AC200V |
|
158 |
181E1-39-J61-83 AC100V |
|
159 |
181E1-39-J62 AC100V |
|
160 |
181E1-83 AC100V |
|
161 |
181E1-83 AC200V |
|
162 |
181E1-83-PLL AC100V |
|
163 |
181E1-83-PLL AC200V |
|
164 |
181E1-83-PSL AC100V |
|
165 |
181E1-83-PSL AC200V |
|
166 |
181E1 AC100V |
|
167 |
181E1 AC200V |
|
168 |
181E1 DC24V |
|
169 |
181E1-J41 AC100V |
|
170 |
181E1-J41-PSL AC200V |
|
171 |
181E1-J42-PLL AC100V |
|
172 |
181E1-J61-83 AC100V |
|
173 |
181E1-J61-83-PSL AC100V |
|
174 |
181E1-J61-83-PSL AC200V |
|
175 |
181E1-J61 AC100V |
|
176 |
181E1-J61 AC200V |
|
177 |
181E1-J61-PLL AC100V |
|
178 |
181E1-J61-PSL AC100V |
|
179 |
181E1-J61-PSL AC200V |
|
180 |
181E1-J62-83 AC100V |
|
181 |
181E1-J62-83-PLL AC100V |
|
182 |
181E1-J62-83-PSL AC100V |
|
183 |
181E1-J62-83-PSL AC200V |
|
184 |
181E1-J62 AC100V |
|
185 |
181E1-J62 AC200V |
|
186 |
181E1-J62-PLL AC100V |
|
187 |
181E1-J62-PLL AC200V |
|
188 |
181E1-J62-PSL AC100V |
|
189 |
181E1-J62-PSL AC200V |
|
190 |
181E1-J62-PSLN AC100V |
|
191 |
181E1-PLL AC100V |
|
192 |
181E1-PLL AC200V |
|
193 |
181E1-PLLN AC100V |
|
194 |
181E1-PLLN AC200V |
|
195 |
181E1-PSL AC100V |
|
196 |
181E1-PSL AC200V |
|
197 |
183-4E2-13-39 AC100V |
|
198 |
183-4E2-13-39-J62 AC200V |
|
199 |
183-4E2-13-39-J63 AC100V |
|
200 |
183-4E2-13-83 AC200V |
|
201 |
183-4E2-13-83-PSL AC100V |
|
202 |
183-4E2-13-83-PSL AC200V |
|
203 |
183-4E2-13-83-PSLN AC100V |
|
204 |
183-4E2-13 AC100V |
|
205 |
183-4E2-13 AC200V |
|
206 |
183-4E2-13-J42-83-PSL AC200V |
|
207 |
183-4E2-13-J62-83 AC100V |
|
208 |
183-4E2-13-J62-83-PSL AC100V |
|
209 |
183-4E2-13-J62 AC100V |
|
210 |
183-4E2-13-J62 AC200V |
|
211 |
183-4E2-13-J62-PLL AC200V |
|
212 |
183-4E2-13-J62-PSL AC100V |
|
213 |
183-4E2-13-J63 AC200V |
|
214 |
183-4E2-13-J63-PLL AC200V |
|
215 |
183-4E2-13-J63-PSL AC100V |
|
216 |
183-4E2-13-J63-PSL AC200V |
|
217 |
183-4E2-13-PLL AC100V |
|
218 |
183-4E2-13-PLL AC200V |
|
219 |
183-4E2-13-PSL AC100V |
|
220 |
183-4E2-13-PSL AC200V |
|
221 |
183-4E2-39 AC100V |
|
222 |
183-4E2-39 AC200V |
|
223 |
183-4E2-39-J62 AC100V |
|
224 |
183-4E2-83 AC100V |
|
225 |
183-4E2-83 AC200V |
|
226 |
183-4E2-83-PLL AC100V |
|
227 |
183-4E2-83-PSL AC100V |
|
228 |
183-4E2-83-PSL AC200V |
|
229 |
183-4E2 AC100V |
|
230 |
183-4E2 AC200V |
|
231 |
183-4E2-J42-83-PLL AC200V |
|
232 |
183-4E2-J62-83 AC200V |
|
233 |
183-4E2-J62-83-PLL AC200V |
|
234 |
183-4E2-J62-83-PSL AC100V |
|
235 |
183-4E2-J62-83-PSL AC200V |
|
236 |
183-4E2-J62 AC100V |
|
237 |
183-4E2-J62 AC200V |
|
238 |
183-4E2-J62-PLL AC100V |
|
239 |
183-4E2-J62-PLL AC200V |
|
240 |
183-4E2-J62-PSL AC100V |
|
241 |
183-4E2-J62-PSL AC200V |
|
242 |
183-4E2-J63-83 AC200V |
|
243 |
183-4E2-J63-83-PLL AC100V |
|
244 |
183-4E2-J63-83-PSL AC100V |
|
245 |
183-4E2-J63 AC100V |
|
246 |
183-4E2-J63 AC200V |
|
247 |
183-4E2-J63 DC24V |
|
248 |
183-4E2-J63-PLL AC100V |
|
249 |
183-4E2-J63-PLL AC200V |
|
250 |
183-4E2-J63-PSL AC100V |
|
251 |
183-4E2-PLL AC100V |
|
252 |
183-4E2-PLL AC200V |
|
253 |
183-4E2-PSL AC100V |
|
254 |
183-4E2-PSL AC200V |
|
255 |
183-4E2-PSLN AC200V |
|
256 |
A180-4E1-25-39-83 AC100V |
|
257 |
A180-4E1-25-39-83 AC200V |
|
258 |
A180-4E1-25-39 AC100V |
|
259 |
A180-4E1-25-39 AC200V |
|
260 |
A180-4E1-25-83 AC100V |
|
261 |
A180-4E1-25-83 AC200V |
|
262 |
A180-4E1-25-83-PLL AC100V |
|
263 |
A180-4E1-25-83-PLL AC200V |
|
264 |
A180-4E1-25-83-PSL AC100V |
|
265 |
A180-4E1-25-83-PSL AC200V |
|
266 |
A180-4E1-25 AC100V |
|
267 |
A180-4E1-25 AC200V |
|
268 |
A180-4E1-25 DC24V |
|
269 |
A180-4E1-25-PLL AC100V |
|
270 |
A180-4E1-25-PLL AC200V |
|
271 |
A180-4E1-25-PSL AC100V |
|
272 |
A180-4E1-25-PSL AC200V |
|
273 |
A180-4E1-25-PSLN AC100V |
|
274 |
A180-4E1-39-83 AC100V |
|
275 |
A180-4E1-39-83 AC200V |
|
276 |
A180-4E1-39 AC100V |
|
277 |
A180-4E1-39 AC200V |
|
278 |
A180-4E1-83 AC100V |
|
279 |
A180-4E1-83 AC200V |
|
280 |
A180-4E1-83-PLL AC100V |
|
281 |
A180-4E1-83-PLL AC200V |
|
282 |
A180-4E1-83-PSL AC100V |
|
283 |
A180-4E1-83-PSL AC200V |
|
284 |
A180-4E1-83-PSLN AC100V |
|
285 |
A180-4E1-83-PSLN AC200V |
|
286 |
A180-4E1 AC100V |
|
287 |
A180-4E1 AC200V |
|
288 |
A180-4E1-CPSL DC24V |
|
289 |
A180-4E1-PLL AC100V |
|
290 |
A180-4E1-PLL AC200V |
|
291 |
A180-4E1-PLLN AC100V |
|
292 |
A180-4E1-PSL AC100V |
|
293 |
A180-4E1-PSL AC200V |
|
294 |
A180-4E1-PSLN AC100V |
|
295 |
A180-4E1-PSLN AC200V |
|
296 |
A180-4E2-25-39-83 AC100V |
|
297 |
A180-4E2-25-39 AC100V |
|
298 |
A180-4E2-25-39 AC200V |
|
299 |
A180-4E2-25-83-PLL AC200V |
|
300 |
A180-4E2-25-83-PSL AC100V |
|
301 |
A180-4E2-25-83-PSL AC200V |
|
302 |
A180-4E2-25 AC100V |
|
303 |
A180-4E2-25 AC200V |
|
304 |
A180-4E2-25-PLL AC100V |
|
305 |
A180-4E2-25-PLL AC200V |
|
306 |
A180-4E2-25-PSL AC100V |
|
307 |
A180-4E2-25-PSL AC200V |
|
308 |
A180-4E2-25-PSLN AC100V |
|
309 |
A180-4E2-39 AC100V |
|
310 |
A180-4E2-39 AC200V |
|
311 |
A180-4E2-83 AC100V |
|
312 |
A180-4E2-83 AC200V |
|
313 |
A180-4E2-83-PLL AC100V |
|
314 |
A180-4E2-83-PLL AC200V |
|
315 |
A180-4E2-83-PSL AC100V |
|
316 |
A180-4E2-83-PSL AC200V |
|
317 |
A180-4E2 AC100V |
|
318 |
A180-4E2 AC200V |
|
319 |
A180-4E2-PLL AC100V |
|
320 |
A180-4E2-PLL AC200V |
|
321 |
A180-4E2-PSL AC100V |
|
322 |
A180-4E2-PSL AC200V |
|
323 |
A180-4E2-PSLN AC100V |
|
324 |
A180-4E2-PSLN AC200V |
|
325 |
A180E1-2-39 AC100V |
|
326 |
A180E1-2-83 AC100V |
|
327 |
A180E1-2-83 AC200V |
|
328 |
A180E1-2-83-PSL AC100V |
|
329 |
A180E1-2 AC200V |
|
330 |
A180E1-2-PSL AC100V |
|
331 |
A180E1-39 AC100V |
|
332 |
A180E1-39 AC200V |
|
333 |
A180E1-83 AC200V |
|
334 |
A180E1-83-PSL AC100V |
|
335 |
A180E1-83-PSL AC200V |
|
336 |
A180E1-83-PSLN AC100V |
|
337 |
A180E1 AC100V |
|
338 |
A180E1 AC200V |
|
339 |
A180E1-PLL AC100V |
|
340 |
A180E1-PLL AC200V |
|
341 |
A180E1-PLLN AC100V |
|
342 |
A180E1-PSL AC100V |
|
343 |
A180E1-PSL AC200V |
|
344 |
A181E1-2-25-83 AC100V |
|
345 |
A181E1-2-25-83-PSL AC100V |
|
346 |
A181E1-2-25 AC100V |
|
347 |
A181E1-2-25 AC200V |
|
348 |
A181E1-2-25-PLL AC200V |
|
349 |
A181E1-2-83 AC100V |
|
350 |
A181E1-2-83-PSL AC100V |
|
351 |
A181E1-2-PLL AC100V |
|
352 |
A181E1-2-PLL AC200V |
|
353 |
A181E1-25-39-83 AC100V |
|
354 |
A181E1-25-39 AC100V |
|
355 |
A181E1-25-39 AC200V |
|
356 |
A181E1-25-83 AC100V |
|
357 |
A181E1-25-83-PLL AC100V |
|
358 |
A181E1-25-83-PLL AC200V |
|
359 |
A181E1-25-83-PSL AC100V |
|
360 |
A181E1-25-83-PSL AC200V |
|
361 |
A181E1-25 AC100V |
|
362 |
A181E1-25 AC200V |
|
363 |
A181E1-25-PLL AC100V |
|
364 |
A181E1-25-PSL AC100V |
|
365 |
A181E1-25-PSL AC200V |
|
366 |
A181E1-39 AC100V |
|
367 |
A181E1-39 AC200V |
|
368 |
A181E1-83 AC100V |
|
369 |
A181E1-83-PLL AC100V |
|
370 |
A181E1-83-PLL AC200V |
|
371 |
A181E1-83-PSL AC100V |
|
372 |
A181E1-83-PSL AC200V |
|
373 |
A181E1 AC100V |
|
374 |
A181E1 AC200V |
|
375 |
A181E1-PLL AC100V |
|
376 |
A181E1-PSL AC100V |
|
377 |
A181E1-PSL AC200V |
|
378 |
A181E1-PSLN AC100V |
|
379 |
A183-4E2-13-25-39 AC200V |
|
380 |
A183-4E2-13-25-83-PSL AC100V |
|
381 |
A183-4E2-13-25-83-PSL AC200V |
|
382 |
A183-4E2-13-25 AC100V |
|
383 |
A183-4E2-13-25 AC200V |
|
384 |
A183-4E2-13-39 AC100V |
|
385 |
A183-4E2-13-39 AC200V |
|
386 |
A183-4E2-13-83 AC100V |
|
387 |
A183-4E2-13-83 AC200V |
|
388 |
A183-4E2-13-83-PSL AC100V |
|
389 |
A183-4E2-13-83-PSL AC200V |
|
390 |
A183-4E2-13 AC100V |
|
391 |
A183-4E2-13 AC200V |
|
392 |
A183-4E2-13-PLL AC200V |
|
393 |
A183-4E2-13-PSL AC100V |
|
394 |
A183-4E2-13-PSL AC200V |
|
395 |
A183-4E2-25-83 AC100V |
|
396 |
A183-4E2-25-83 AC200V |
|
397 |
A183-4E2-25-83-PLL AC100V |
|
398 |
A183-4E2-25-83-PLL AC200V |
|
399 |
A183-4E2-25-83-PSL AC100V |
|
400 |
A183-4E2-25-83-PSL AC200V |
|
401 |
A183-4E2-25 AC100V |
|
402 |
A183-4E2-25 AC200V |
|
403 |
A183-4E2-25-PLL AC100V |
|
404 |
A183-4E2-25-PLL AC200V |
|
405 |
A183-4E2-25-PSL AC100V |
|
406 |
A183-4E2-25-PSL AC200V |
|
407 |
A183-4E2-39-83 AC100V |
|
408 |
A183-4E2-39 AC200V |
|
409 |
A183-4E2-83 AC100V |
|
410 |
A183-4E2-83 AC200V |
|
411 |
A183-4E2-83-PLL AC100V |
|
412 |
A183-4E2-83-PLL AC200V |
|
413 |
A183-4E2-83-PSL AC100V |
|
414 |
A183-4E2-83-PSL AC200V |
|
415 |
A183-4E2 AC100V |
|
416 |
A183-4E2 AC200V |
|
417 |
A183-4E2-PLL AC100V |
|
418 |
A183-4E2-PLL AC200V |
|
419 |
A183-4E2-PSL AC100V |
|
420 |
A183-4E2-PSL AC200V |
|
421 |
A183-4E2-PSLN AC100V |
