Xi lanh CBDA12, CBDA16, CBDA20, CBDA25, CBDA32, CBDA40, CBDA50, CBDA63 Koganei

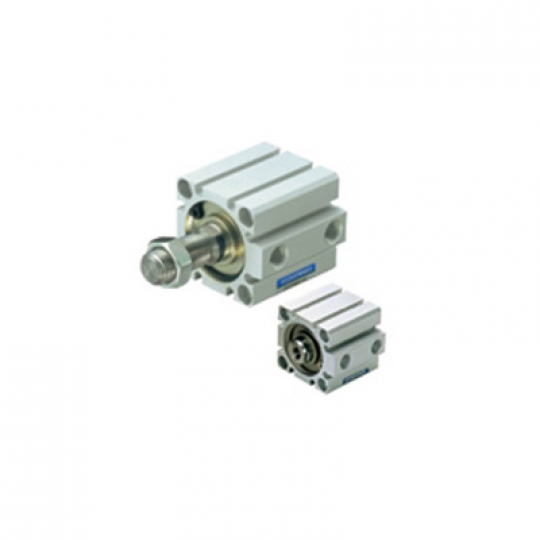

Jig cylinder C series
● Φ6 to 100 mm [0.236 to 3.937 in] cylinder bore. Short, thin body designed for total space saving. Extensive lineup includes a total of 15 variations.
| Items | Cylinder diameter | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | |
| Acting model | Double acting type | |||||||||
| Operating fluid | Air | |||||||||
| Operating pressure range MPa | 0.1 to 1.0 | 0.05 to 1.0 | ||||||||
| Guaranteed pressure resistant MPa | 1.5 | |||||||||
| Operating temperature range °C | 0 to 60 | |||||||||
| Operating speed range mm/s | 30 to 500 | 30 to 300 | ||||||||
| Cushion | Rubber bumper method (standard equipment) | |||||||||
| Lubrication | Not required (When refueling, turbine oil type 1 "ISO VG32" equivalent) | |||||||||
| Piping connection port diameter | M5 × 0.8 | Rc1/8 | Rc1/4 | Rc3/8 | ||||||
| No | Model |
| 1 | CBDA12X5 |
| 2 | CBDA12X5-B |
| 3 | CBDA12X5-B-7 |
| 4 | CBDA12X10 |
| 5 | CBDA12X10-B |
| 6 | CBDA12X10-B-7 |
| 7 | CBDA12X15 |
| 8 | CBDA12X15-B |
| 9 | CBDA12X15-B-7 |
| 10 | CBDA12X20 |
| 11 | CBDA12X20-B |
| 12 | CBDA12X20-B-7 |
| 13 | CBDA12X25 |
| 14 | CBDA12X25-B |
| 15 | CBDA12X25-B-7 |
| 16 | CBDA12X30 |
| 17 | CBDA12X30-B |
| 18 | CBDA12X30-B-7 |
| 19 | CBDA16X5 |
| 20 | CBDA16X5-B |
| 21 | CBDA16X5-B-7 |
| 22 | CBDA16X10 |
| 23 | CBDA16X10-B |
| 24 | CBDA16X10-B-7 |
| 25 | CBDA16X15 |
| 26 | CBDA16X15-7 |
| 27 | CBDA16X15-B |
| 28 | CBDA16X15-B-7 |
| 29 | CBDA16X20 |
| 30 | CBDA16X20-B |
| 31 | CBDA16X20-B-7 |
| 32 | CBDA16X25 |
| 33 | CBDA16X25-7 |
| 34 | CBDA16X25-B |
| 35 | CBDA16X25-B-7 |
| 36 | CBDA16X30 |
| 37 | CBDA16X30-7 |
| 38 | CBDA16X30-B |
| 39 | CBDA16X30-B-7 |
| 40 | CBDA20X5 |
| 41 | CBDA20X5-7 |
| 42 | CBDA20X5-B |
| 43 | CBDA20X5-B-7 |
| 44 | CBDA20X5-G |
| 45 | CBDA20X10 |
| 46 | CBDA20X10-7 |
| 47 | CBDA20X10-B |
| 48 | CBDA20X10-B-7 |
| 49 | CBDA20X10-G |
| 50 | CBDA20X15 |
| 51 | CBDA20X15-7 |
| 52 | CBDA20X15-B |
| 53 | CBDA20X15-B-7 |
| 54 | CBDA20X15-G |
| 55 | CBDA20X20 |
| 56 | CBDA20X20-7 |
| 57 | CBDA20X20-B |
| 58 | CBDA20X20-B-7 |
| 59 | CBDA20X20-G |
| 60 | CBDA20X25 |
| 61 | CBDA20X25-7 |
| 62 | CBDA20X25-B |
| 63 | CBDA20X25-B-7 |
| 64 | CBDA20X25-G |
| 65 | CBDA20X30 |
| 66 | CBDA20X30-7 |
| 67 | CBDA20X30-B |
| 68 | CBDA20X30-B-7 |
| 69 | CBDA20X30-G |
| 70 | CBDA20X35 |
| 71 | CBDA20X35-7 |
| 72 | CBDA20X35-B |
| 73 | CBDA20X35-B-7 |
| 74 | CBDA20X35-G |
| 75 | CBDA20X40 |
| 76 | CBDA20X40-7 |
| 77 | CBDA20X40-B |
| 78 | CBDA20X40-B-7 |
| 79 | CBDA20X40-G |
| 80 | CBDA20X45 |
| 81 | CBDA20X45-7 |
| 82 | CBDA20X45-B |
| 83 | CBDA20X45-B-7 |
| 84 | CBDA20X45-G |
| 85 | CBDA20X50 |
| 86 | CBDA20X50-7 |
| 87 | CBDA20X50-B |
| 88 | CBDA20X50-B-7 |
| 89 | CBDA20X50-G |
| 90 | CBDA25X5 |
| 91 | CBDA25X5-7 |
| 92 | CBDA25X5-B |
| 93 | CBDA25X5-B-7 |
| 94 | CBDA25X5-B-G |
| 95 | CBDA25X5-G |
| 96 | CBDA25X10 |
| 97 | CBDA25X10-7 |
| 98 | CBDA25X10-B |
| 99 | CBDA25X10-B-7 |
| 100 | CBDA25X10-B-G |
| 101 | CBDA25X10-G |
| 102 | CBDA25X15 |
| 103 | CBDA25X15-7 |
| 104 | CBDA25X15-B |
| 105 | CBDA25X15-B-7 |
| 106 | CBDA25X15-B-G |
| 107 | CBDA25X15-G |
| 108 | CBDA25X20 |
| 109 | CBDA25X20-7 |
| 110 | CBDA25X20-B |
| 111 | CBDA25X20-B-7 |
| 112 | CBDA25X20-B-G |
| 113 | CBDA25X20-G |
| 114 | CBDA25X25 |
| 115 | CBDA25X25-7 |
| 116 | CBDA25X25-B |
| 117 | CBDA25X25-B-7 |
| 118 | CBDA25X25-B-G |
| 119 | CBDA25X25-G |
| 120 | CBDA25X30 |
| 121 | CBDA25X30-7 |
| 122 | CBDA25X30-B |
| 123 | CBDA25X30-B-7 |
| 124 | CBDA25X30-B-G |
| 125 | CBDA25X30-G |
| 126 | CBDA25X35 |
| 127 | CBDA25X35-7 |
| 128 | CBDA25X35-B |
| 129 | CBDA25X35-B-7 |
| 130 | CBDA25X35-B-G |
| 131 | CBDA25X35-G |
| 132 | CBDA25X40 |
| 133 | CBDA25X40-7 |
| 134 | CBDA25X40-B |
| 135 | CBDA25X40-B-7 |
| 136 | CBDA25X40-B-G |
| 137 | CBDA25X40-G |
| 138 | CBDA25X45 |
| 139 | CBDA25X45-7 |
| 140 | CBDA25X45-B |
| 141 | CBDA25X45-B-7 |
| 142 | CBDA25X45-B-G |
| 143 | CBDA25X45-G |
| 144 | CBDA25X50 |
| 145 | CBDA25X50-7 |
| 146 | CBDA25X50-B |
| 147 | CBDA25X50-B-7 |
| 148 | CBDA25X50-B-G |
| 149 | CBDA25X50-G |
| 150 | CBDA32X5 |
| 151 | CBDA32X5-7 |
| 152 | CBDA32X5-B |
| 153 | CBDA32X5-B-7 |
| 154 | CBDA32X5-B-G |
| 155 | CBDA32X5-G |
| 156 | CBDA32X10 |
| 157 | CBDA32X10-7 |
| 158 | CBDA32X10-B |
| 159 | CBDA32X10-B-7 |
| 160 | CBDA32X10-B-G |
| 161 | CBDA32X10-G |
| 162 | CBDA32X15 |
| 163 | CBDA32X15-7 |
| 164 | CBDA32X15-B |
| 165 | CBDA32X15-B-7 |
| 166 | CBDA32X15-B-G |
| 167 | CBDA32X15-G |
| 168 | CBDA32X20 |
| 169 | CBDA32X20-7 |
| 170 | CBDA32X20-B |
| 171 | CBDA32X20-B-7 |
| 172 | CBDA32X20-B-G |
| 173 | CBDA32X20-G |
| 174 | CBDA32X25 |
| 175 | CBDA32X25-7 |
| 176 | CBDA32X25-B |
| 177 | CBDA32X25-B-7 |
| 178 | CBDA32X25-B-G |
| 179 | CBDA32X25-G |
| 180 | CBDA32X30 |
| 181 | CBDA32X30-7 |
| 182 | CBDA32X30-B |
| 183 | CBDA32X30-B-7 |
| 184 | CBDA32X30-B-G |
| 185 | CBDA32X30-G |
| 186 | CBDA32X35 |
| 187 | CBDA32X35-7 |
| 188 | CBDA32X35-B |
| 189 | CBDA32X35-B-7 |
| 190 | CBDA32X35-B-G |
| 191 | CBDA32X35-G |
| 192 | CBDA32X40 |
| 193 | CBDA32X40-7 |
| 194 | CBDA32X40-B |
| 195 | CBDA32X40-B-7 |
| 196 | CBDA32X40-B-G |
| 197 | CBDA32X40-G |
| 198 | CBDA32X45 |
| 199 | CBDA32X45-7 |
| 200 | CBDA32X45-B |
| 201 | CBDA32X45-B-7 |
| 202 | CBDA32X45-B-G |
| 203 | CBDA32X45-G |
| 204 | CBDA32X50 |
| 205 | CBDA32X50-7 |
| 206 | CBDA32X50-B |
| 207 | CBDA32X50-B-7 |
| 208 | CBDA32X50-B-G |
| 209 | CBDA32X50-G |
| 210 | CBDA32X75 |
| 211 | CBDA32X75-7 |
| 212 | CBDA32X75-B |
| 213 | CBDA32X75-B-7 |
| 214 | CBDA32X75-B-G |
| 215 | CBDA32X75-G |
| 216 | CBDA32X100 |
| 217 | CBDA32X100-7 |
| 218 | CBDA32X100-B |
| 219 | CBDA32X100-B-7 |
| 220 | CBDA32X100-B-G |
| 221 | CBDA32X100-G |
| 222 | CBDA40X5 |
| 223 | CBDA40X5-7 |
| 224 | CBDA40X5-B |
| 225 | CBDA40X5-B-7 |
| 226 | CBDA40X10 |
| 227 | CBDA40X10-7 |
| 228 | CBDA40X10-B |
| 229 | CBDA40X10-B-7 |
| 230 | CBDA40X15 |
| 231 | CBDA40X15-7 |
| 232 | CBDA40X15-B |
| 233 | CBDA40X15-B-7 |
| 234 | CBDA40X20 |
| 235 | CBDA40X20-7 |
| 236 | CBDA40X20-B |
| 237 | CBDA40X20-B-7 |
| 238 | CBDA40X25 |
| 239 | CBDA40X25-7 |
| 240 | CBDA40X25-B |
| 241 | CBDA40X25-B-7 |
| 242 | CBDA40X30 |
| 243 | CBDA40X30-7 |
| 244 | CBDA40X30-B |
| 245 | CBDA40X30-B-7 |
| 246 | CBDA40X35 |
| 247 | CBDA40X35-7 |
| 248 | CBDA40X35-B |
| 249 | CBDA40X35-B-7 |
| 250 | CBDA40X40 |
| 251 | CBDA40X40-7 |
| 252 | CBDA40X40-B |
| 253 | CBDA40X40-B-7 |
| 254 | CBDA40X45 |
| 255 | CBDA40X45-7 |
| 256 | CBDA40X45-B |
| 257 | CBDA40X45-B-7 |
| 258 | CBDA40X50 |
| 259 | CBDA40X50-7 |
| 260 | CBDA40X50-B |
| 261 | CBDA40X50-B-7 |
| 262 | CBDA40X75 |
| 263 | CBDA40X75-7 |
| 264 | CBDA40X75-B |
| 265 | CBDA40X75-B-7 |
| 266 | CBDA40X100 |
| 267 | CBDA40X100-7 |
| 268 | CBDA40X100-B |
| 269 | CBDA40X100-B-7 |
| 270 | CBDA50X10 |
| 271 | CBDA50X10-7 |
| 272 | CBDA50X10-B |
| 273 | CBDA50X10-B-7 |
| 274 | CBDA50X10-G |
| 275 | CBDA50X15 |
| 276 | CBDA50X15-7 |
| 277 | CBDA50X15-B |
| 278 | CBDA50X15-B-7 |
| 279 | CBDA50X15-G |
| 280 | CBDA50X20 |
| 281 | CBDA50X20-7 |
| 282 | CBDA50X20-B |
| 283 | CBDA50X20-B-7 |
| 284 | CBDA50X20-G |
| 285 | CBDA50X25 |
| 286 | CBDA50X25-7 |
| 287 | CBDA50X25-B |
| 288 | CBDA50X25-B-7 |
| 289 | CBDA50X25-G |
| 290 | CBDA50X30 |
| 291 | CBDA50X30-7 |
| 292 | CBDA50X30-B |
| 293 | CBDA50X30-B-7 |
| 294 | CBDA50X30-G |
| 295 | CBDA50X35 |
| 296 | CBDA50X35-7 |
| 297 | CBDA50X35-B |
| 298 | CBDA50X35-B-7 |
| 299 | CBDA50X35-G |
| 300 | CBDA50X40 |
| 301 | CBDA50X40-7 |
| 302 | CBDA50X40-B |
| 303 | CBDA50X40-B-7 |
| 304 | CBDA50X40-G |
| 305 | CBDA50X45 |
| 306 | CBDA50X45-7 |
| 307 | CBDA50X45-B |
| 308 | CBDA50X45-B-7 |
| 309 | CBDA50X45-G |
| 310 | CBDA50X50 |
| 311 | CBDA50X50-7 |
| 312 | CBDA50X50-B |
| 313 | CBDA50X50-B-7 |
| 314 | CBDA50X50-G |
| 315 | CBDA50X75 |
| 316 | CBDA50X75-7 |
| 317 | CBDA50X75-B |
| 318 | CBDA50X75-B-7 |
| 319 | CBDA50X75-G |
| 320 | CBDA50X100 |
| 321 | CBDA50X100-7 |
| 322 | CBDA50X100-B |
| 323 | CBDA50X100-B-7 |
| 324 | CBDA50X100-G |
| 325 | CBDA63X10 |
| 326 | CBDA63X10-B |
| 327 | CBDA63X10-B-7 |
| 328 | CBDA63X15 |
| 329 | CBDA63X15-B |
| 330 | CBDA63X15-B-7 |
| 331 | CBDA63X20 |
| 332 | CBDA63X20-B |
| 333 | CBDA63X20-B-7 |
| 334 | CBDA63X25 |
| 335 | CBDA63X25-B |
| 336 | CBDA63X25-B-7 |
| 337 | CBDA63X30 |
| 338 | CBDA63X30-B |
| 339 | CBDA63X30-B-7 |
| 340 | CBDA63X35 |
| 341 | CBDA63X35-B |
| 342 | CBDA63X35-B-7 |
| 343 | CBDA63X40 |
| 344 | CBDA63X40-B |
| 345 | CBDA63X40-B-7 |
| 346 | CBDA63X45 |
| 347 | CBDA63X45-B |
| 348 | CBDA63X45-B-7 |
| 349 | CBDA63X50 |
| 350 | CBDA63X50-B |
| 351 | CBDA63X50-B-7 |
| 352 | CBDA63X75 |
| 353 | CBDA63X75-B |
| 354 | CBDA63X75-B-7 |
| 355 | CBDA63X100 |
| 356 | CBDA63X100-B |
| 357 | CBDA63X100-B-7 |
